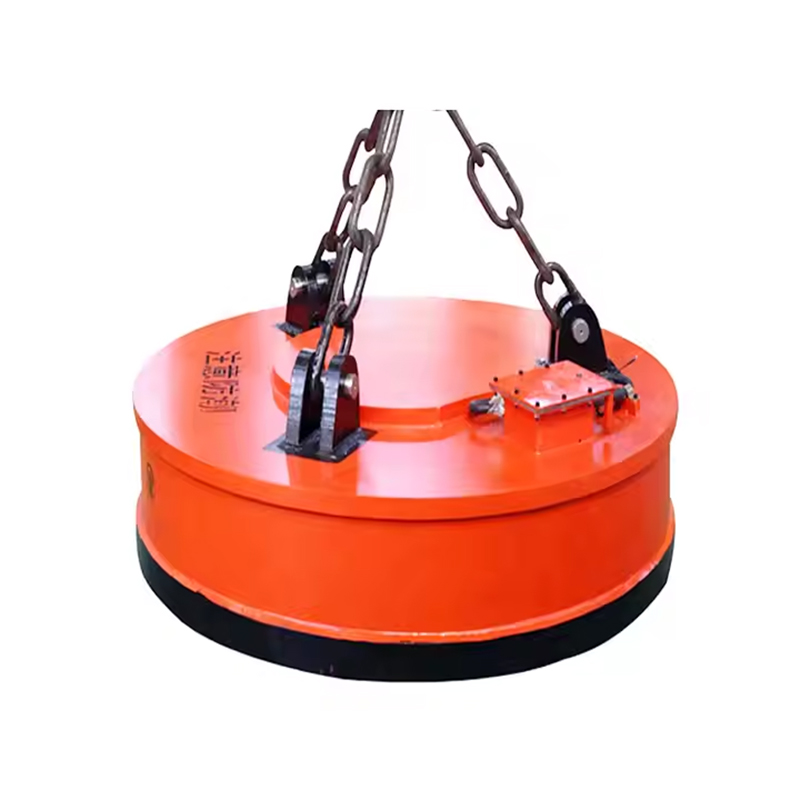

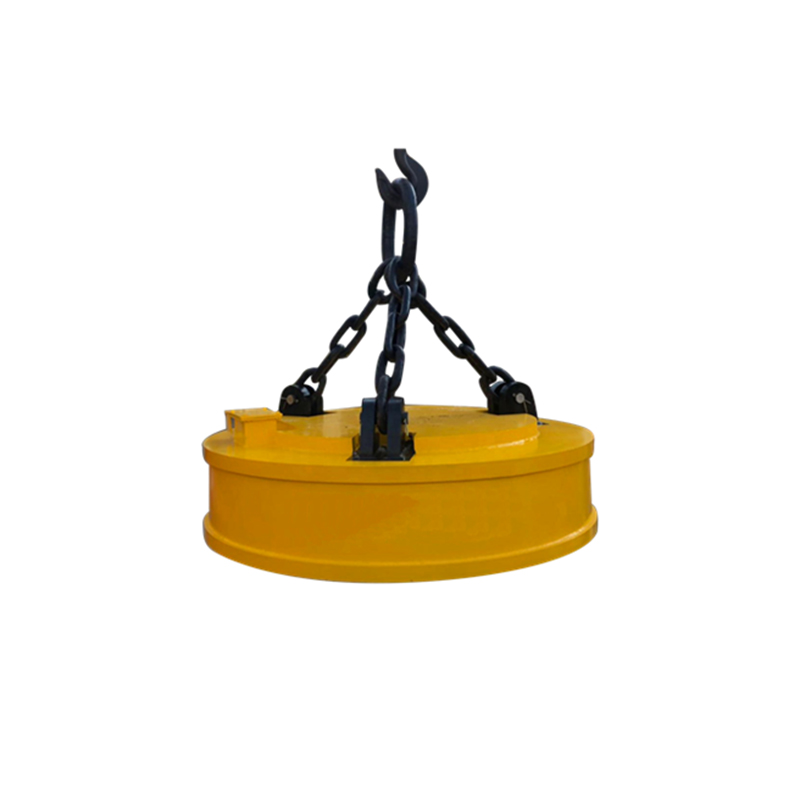

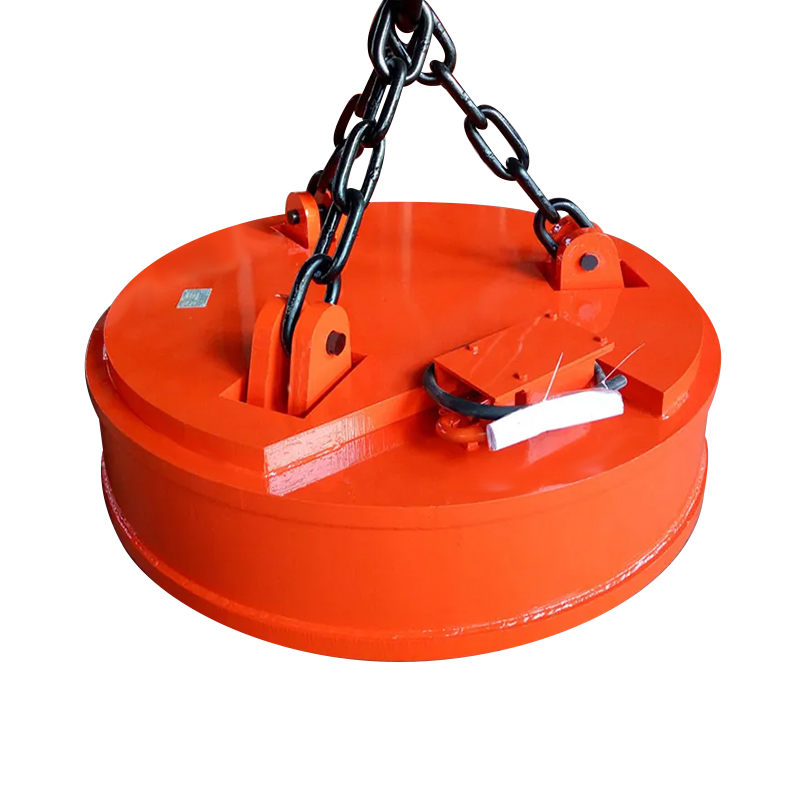

24vdc 700mm Electro Scrap Lifting Electromagnet

High Magnetic Force & Energy-Efficient & Safe & Robust Construction & Smart Control

Product Parameters

Item No :
KMW
Order(MOQ) :
2
Payment :
100% Payment In Advance
Product Origin :
China
Shipping Port :
XiaMen
Lead Time :
Standard units in 7 days, custom designs 15-30 days.
Weight :
According to the model

Product Details

Product Overview

The Lifting Electromagnet is an electrically controlled magnetic handling device that generates strong magnetic fields when energized to lift ferromagnetic materials (steel plates, ingots, scrap metal, etc.), with instant demagnetization when powered off for safe operation. Ideal for efficient material handling in steel mills, ports, and scrap recycling industries.

Key Features

✅ High Magnetic Force:

Electromagnetic coil design delivers 12,000-15,000 Gauss with max lifting capacity up to 30 tons.

✅ Energy-Efficient & Safe:

Automatic demagnetization when power-off (OSHA compliant).

40% lower energy consumption vs permanent magnets.

✅ Robust Construction:

Totally enclosed (IP65) for dust/water/shock resistance.

Class H insulated coils withstand 180°C.

✅ Smart Control:

Optional PLC remote control for automation integration.

Overload protection and temperature monitoring.

Product Variants

Model	Application	Advantage
Rectangular	Steel plates/coils	Large contact area
Circular	Scrap metal/cast iron	Deep field penetration
Rotary	Automated lines	360° positioning
Scrap-Optimized	Metal fragments/shredded scrap	Leakage-proof design

Key Industries

Steelmaking: Slab/coil handling

Ports: Containerized scrap loading

Recycling: Auto shredder residue (ASR) sorting

Machining: Heavy casting/mold transport

Model				KMW5-70L/1	KMW5-80L/1	KMW5-90L/1	KMW5-110L/1	KMW5-120L/1	KMW5-130L/1	KMW5-135L/1	KMW5-150L/1	KMW5-165L/1	KMW5-180L/1	KMW5-185L/1	KMW5-210L/1	KMW5-240L/1
Overall Dimension (mm)			A	700	800	900	1100	1200	1300	1350	1500	1650	1800	1850	2100	2400
			B	800	800	1090	1140	1180	1240	1250	1250	1590	1490	1515	1860	2020
			C	160	160	200	220	220	250	250	350	370	370	370	400	450
			D	90	90	125	150	150	175	175	210	230	230	230	250	280
			E	30	30	40	45	45	50	50	60	75	75	75	80	90
Weight				490	620	800	1350	1800	2010	2580	2830	3450	4230	4550	7000	9000
Cold state power			Kw	3.3	3.96	5.9	7.7	9.02	12	13.2	15.6	16.5	22.5	23.8	28.4	33.9
Lift capacity (cold/hot state)	Rated voltage mode	Cold-state current	A	15	18	26.6	35	41	54	60	71.2	75	102.4	108	129	154
		Steel dall	kg	2500	3000	4500	6500	7500	8500	9000	11000	12500	14500	15000	21000	23000
		Steelingot	kg	380/1200	480/250	600/400	1000800	1200	1400/1100	1500	1900/1500	2300/1800	2750/2100	3000	3500/2800	4800/3800
		Scraps	kg	120/100	150/130	250/200	450/400	600	700/600	900	1100/900	1300/1100	1600/2100	1700	2200/1850	2850/2250
	Strong excitation mode	Current (cold/hot state)	A	——	——	——	16.3/32	——	71.3/49	——	93.8/64.7	98.9/682	135/93	——	162/112	175/121
		Power (cold/hot state)	kw	——	——	——	13.4/6.4	——	20,7/19.8	——	27,2/12.9	28,7/13.6	39,1/18.6	——	47/22.4	50.8/24.2
		Iron ingot	kg	——	——	——	1050/900	——	1500/1250	——	200/1700	2500/2100	2900/2400	——	3700/3100	5000/4200
Equipment completeness		Contral equipment		STML-4EC		STQL-7E-C	STQL-9E-C		STQL-14EC		STQL-19E-C		STQL-25E-C	STQL-32EC		STQL-38EC
		Cable reel		JTA50-10-20			JTA100-15-2						JTA200-15-2
		Cable adapter		DL-102									DL-102
