Custom Industrial Magnetic Drum Separator Production Line Matching

This custom industrial magnetic drum separator supports full-size and full-parameter customization to fit diverse industrial production line conditions, effectively removing iron contaminants and boosting material purity and finished product qualification rate. Designed for both dry and wet separation, this production line matching magnetic drum separator delivers stable operation, high separation accuracy and low maintenance cost, serving as essential iron removal equipment for mining, aggregate, solid waste recycling and chemical powder industries.

Product Parameters

Item No :
MDM
Order(MOQ) :
2 PCS
Payment :
T/T 100% in advance
Product Origin :
China
Shipping Port :
XiaMen
Lead Time :
Standard units in 7 days, custom designs 15-30 days.
Weight :
According to the model

Product Details

1.Product Description

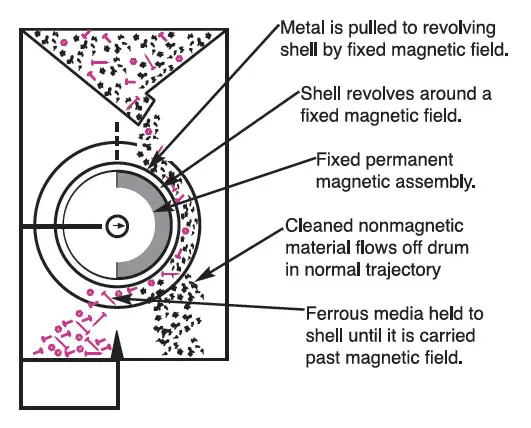

This is a half magnetic drum ,also named half magnetic roller, has a half disc(180 degree) stationary magnetic section that is covered by a revolving round stainless steel shell with rotation axis. It can forman automated separating system together with electric drive motor.

Specifications

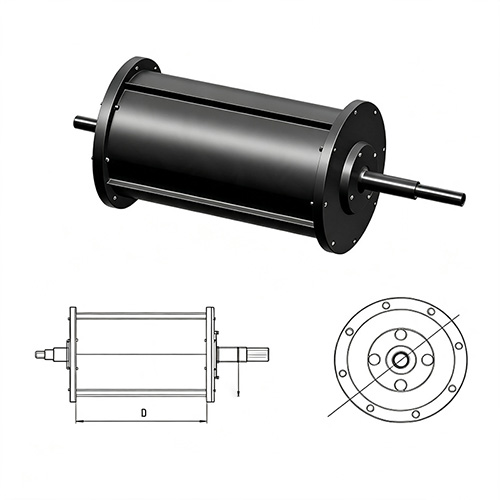

Magnetic Drum Separator

Model No.	Dia A(mm)	B(mm)	C(mm)	Weight (kg)
MDM2130	215	300	25	29
MDM2135	215	350	25	34
MDM2140	215	400	25	39
MDM2145	215	450	25	44
MDM2150	215	500	25	49
MDM2160	215	600	25	59
MDM2170	215	700	25	69
MDM2180	215	800	25	79
MDM2190	215	900	25	89
MDM2110	215	1000	25	99
MDM3130	315	300	25	62
MDM3135	315	350	25	72
MDM3140	315	400	25	82
MDM3145	315	450	25	92
MDM3150	315	500	25	102
MDM3160	315	600	25	122
MDM3170	315	700	25	142
MDM3180	315	800	25	162
MDM3190	315	900	25	182
MDM3110	315	1000	28	202
MDM3111	315	1100	28	222
MDM4030	400	300	28	100
MDM4035	400	350	28	116
MDM4040	400	400	28	132
MDM4045	400	450	28	148
MDM4050	400	500	28	164
MDM4060	400	600	28	180
MDM4070	400	700	28	196
MDM4080	400	800	35	212
MDM4090	400	900	35	228
MDM4010	400	1000	35	244
MDM4011	400	1100	35	260
MDM4012	400	1200	35	276

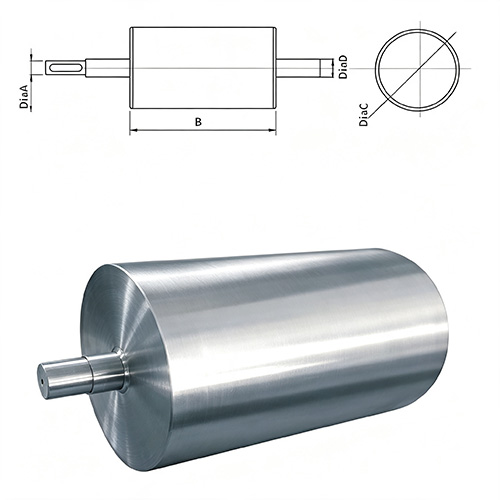

half magnetic drum

Model No.	Dia A(mm)	B(mm)	DiaC(mm)	DiaD(mm)	Weight (kg)
PM2030	200	350	30	40	33
PM2040	200	450	30	40	42
PM2050	200	550	30	40	51
PM2060	200	650	30	40	60
PM2070	200	750	30	40	69
PM2080	200	850	30	40	78
PM2090	200	950	30	40	87
PM20100	200	1050	30	40	96
PM3030	300	350	40	50	74
PM3040	300	450	40	50	95
PM3050	300	550	40	50	116
PM3060	300	650	40	50	137
PM3070	300	750	40	50	158
PM3080	300	850	40	50	179
PM3090	300	950	40	50	200
PM30100	300	1050	40	50	221
PM4030	400	350	50	60	131
PM4040	400	450	50	60	168
PM4050	400	550	50	60	205
PM4060	400	650	50	60	242
PM4070	400	750	50	60	279
PM4080	400	850	50	60	316
PM4090	400	950	50	60	353
PM40100	400	1050	50	60	390

2.Features

Continuous self-cleaning design is suitable for automated production line.
Surface material is 304 or 316L stainless steel,good corrosion resistance and no pollution.
No electric power required for magnetic field generation.
Magnetic strength can be chosen by customer.

3.Application Scenarios

Mining Processing: Iron ore, quartz sand and feldspar purification;
Aggregate Production Line: Construction sand and machine-made sand iron removal;
Solid Waste Recycling: Slag, construction waste and recycled material separation;
Chemical Powder Industry: Chemical powder and refractory material purification;
Ceramic & Building Material: Kaolin and ceramic raw material iron elimination;
New Energy & Grain Industry: Fine separation for particle and powder raw materials.

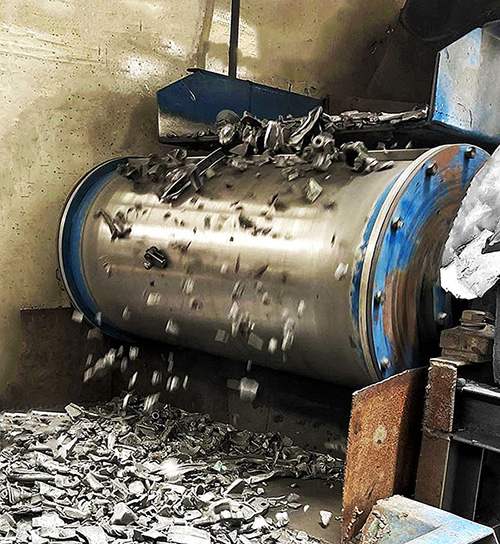

Auto Iron Removing Magnetic Drum Separator

4.Why Choose Us

We focus on the production of high-performance, high-precision, and technically demanding magnetic materials. Specifically for high-end applications such as motors and sensors, we have developed products that maintain stable performance under complex conditions like high temperatures. Key features include:

Low weight loss: High material stability, minimal loss

Low temperature coefficient: Excellent performance retention under temperature variations

Excellent consistency: Strong batch-to-batch stability, suitable for large-scale applications

FAQ

Q1: Can you customize according to capacity and site size?

A1: Yes. We fully customize magnetic strength, drum specifications, overall size and feeding structure to match small, medium and large production lines and limited factory space with exclusive engineering solutions.

Q2: Does the machine support both dry and wet separation?

A2: Yes. This production line matching magnetic drum separator supports switchable dry and wet separation modes, suitable for powder, granular and ore pulp materials. It covers multiple industrial working conditions and meets diversified raw material processing needs
