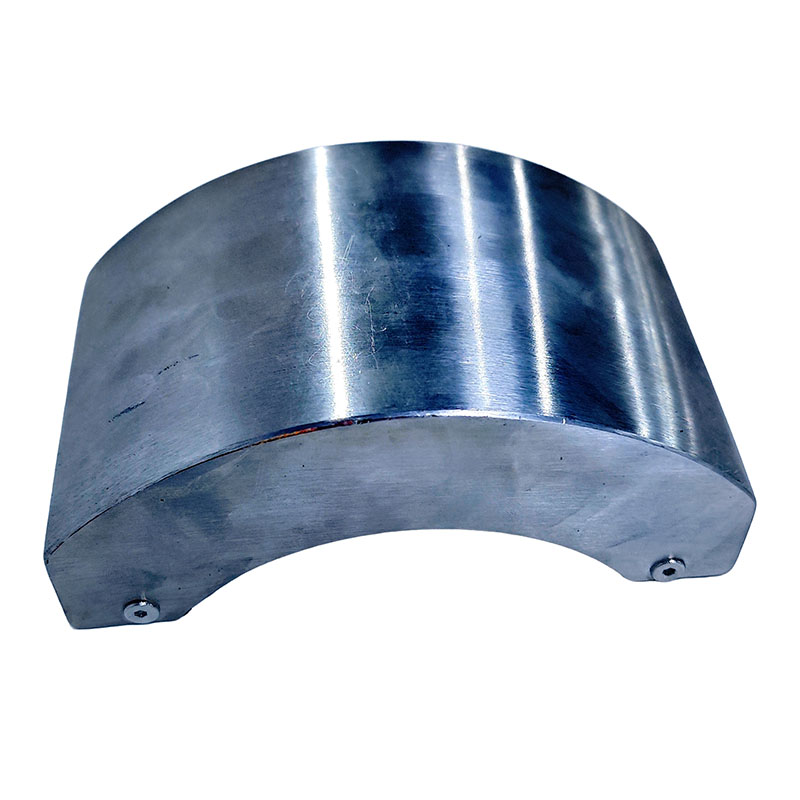

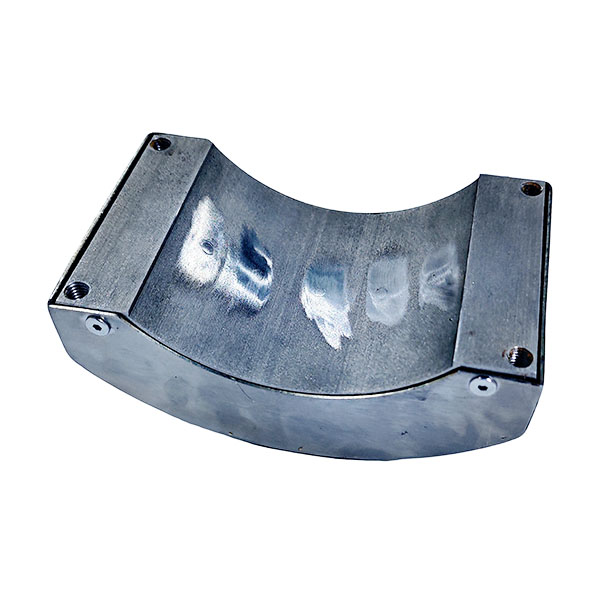

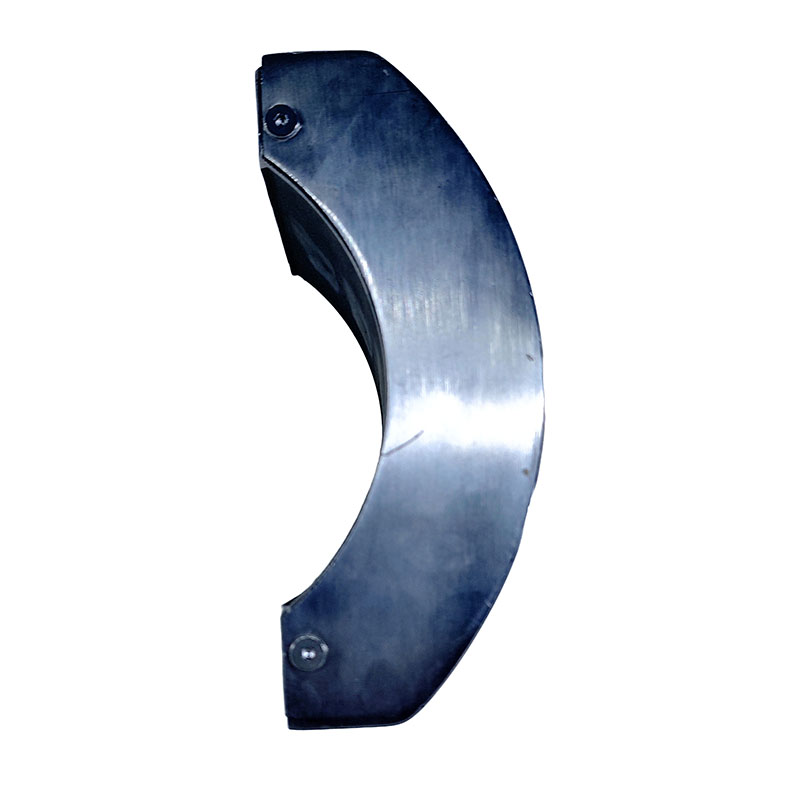

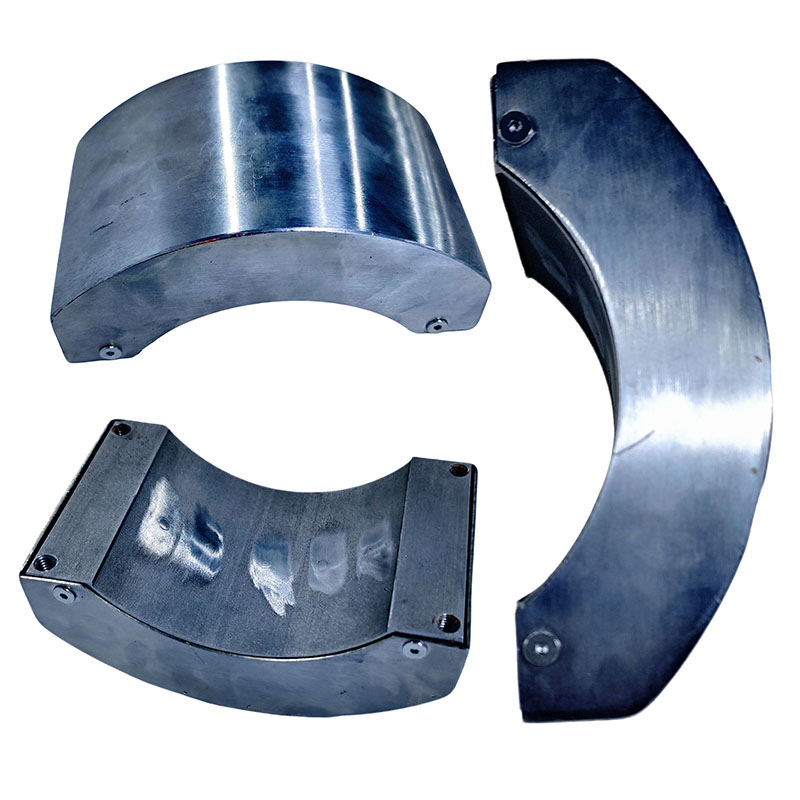

Halbach Magnetic Assembly for Wall-Climbing Robots

Product Description

This product is specially designed for climbing robots, and is the core component for stable climbing of magnetic climbing robots. As a special permanent magnet array for climbing the wall, based on the principle of the Halbach array, the high-performance neodymium iron boron permanent magnets with different magnetization directions are arranged in a specific pattern to realize the unique magnetic field distribution of "strong magnet on one side and weak magnet on the other side", which perfectly meets the use requirements of the robot's single-sided strong magnet component.And the adsorption force can reach 1.5-3 times the robot's own weight, meeting the safety margin requirements, positioning accuracy of ±0.02 mm, suitable for curved surfaces, welds and other uneven wall surfaces, can work stably in the environment of -40 ℃ ~ 100 ℃,The lightweight design takes into account both the adsorption force and the mobility of the robot, avoiding an additional increase in equipment load, helping wall-climbing robots to move smoothly and work efficiently in high-altitude and complex working conditions, and adapting to the magnetic adsorption component requirements of various industrial-grade wall-climbing robots.

Applications

Industrial Inspection Wall-Climbing Robots: Used for non-destructive testing and surface inspection of large ferromagnetic structures (such as wind power towers, ship hulls, and nuclear island containment), realizing high-altitude unmanned operations and reducing safety risks;

Building Maintenance Wall-Climbing Robots: Used for cleaning, painting, and polishing the exterior walls of high-rise buildings, replacing manual high-altitude operations, and improving operation efficiency and safety;

Pipeline Inspection Wall-Climbing Robots: Suitable for multi-branch complex pipelines such as nuclear power plant pipelines and petrochemical pipelines, completing pipeline outer wall inspection and derusting operations, adapting to complex curved surfaces and narrow spaces;

Fire Rescue Wall-Climbing Robots: Used for reconnaissance and fire extinguishing in fire scenes and dangerous areas, capable of moving stably on vertical walls to ensure the safety of rescuers;

Ship Maintenance Wall-Climbing Robots: Used for cleaning, derusting, and welding of ship outer plates and bulkheads, adapting to ship curved walls and improving maintenance efficiency;

Wind Power Operation and Maintenance Wall-Climbing Robots: Used for surface inspection and maintenance of wind power towers, adapting to tower curved surfaces and working stably in complex outdoor environments.

How to Customize

1. Communicate with our sales staff

2. Provide the required size drawings

3. Determine what kind of magnetization method meets your needs

Inform us of the wall-climbing robot model, self-weight, type of working wall surface (flat/curved/weld), required adsorption force, installation size and installation method, and clarify whether adjustable adsorption or quick desorption function is needed to accurately customize the wall-climbing robot magnet assembly;

Why Choose Us?

1. Industry Experience

We have been established for more than 10 years and have rich experience in production and manufacturing. With professional sales and technical personnel, we can provide you with services.Deepen the field of magnetic components for climbing robots, master the core technology of precise design and overall magnetization of magnetic components for climbing robot, adapt to complex operation scenes, and create high-performance Halbach adsorption magnet.Provide your creative design drawings, we will assist in evaluation and production.

2. Product Quality Assurance

Adopt high-grade NdFeB materials and high-quality magnetic conductive and protective materials, each wall-climbing special permanent magnet array undergoes strict tests of adsorption force, magnetic leakage and high and low temperature, complying with ISO9001 and RoHS standards, waterproof, dustproof and corrosion-resistant, ensuring the stable performance of low-leakage magnetic adsorption modules.

3. Strong Customization Capability

According to wall-climbing robots of different models and operation needs, customize size, adsorption force and installation method, support the whole process service from prototype trial production to mass production, adapt to special needs such as curved surface adaptation and obstacle crossing, and accurately match the use scenario of the robot single-side strong magnetic component.

4.Lightweight Adaptation

Optimize the structural design, minimize the component weight while ensuring the adsorption force, do not affect the mobility and load capacity of the wall-climbing robot, achieve a perfect balance between adsorption force and lightweight, and adapt to the installation needs of various robot magnetic adsorption components.

5.Comprehensive Service Support

Professional team 1-to-1 technical consultation, provide installation guidance, performance test report and after-sales warranty, timely respond to customer needs, solve all kinds of problems in the use of climbing robot magnetic components, make the purchase more worry-free.

6. Authoritative Certification

FAQ

1.Does this Halbach magnetic component adaptation all types of wall-climbing robots?

It is suitable for most industrial magnetic adsorption wall-climbing robots, including flat, curved, pipeline wall-climbing robots, etc. The size and adsorption force can be customized according to the robot's self-weight, working wall type, installation space and other needs. Exclusive design schemes can be provided for special model robots, and it is also suitable for high-end wall-climbing robots with obstacle crossing and curved surface adaptation functions.

2.Can the adsorption force of Halbach magnetic components be adjusted? Does it support rapid desorption?

It supports customized adjustment of adsorption force, and the appropriate adsorption force can be set according to the robot's operation needs (meeting 1.5-3 times the safety margin); at the same time, it can be customized with quick desorption function. Through optimized magnetic circuit design, the suction force can be quickly reduced when the robot evacuates and crosses obstacles, reducing driving power consumption, and also facilitating the robot to be removed from the wall surface, improving operation flexibility.

3.How is the stability of Halbach magnetic components in harsh outdoor environments?

The component adopts waterproof, dustproof and corrosion-resistant design, equipped with a 304 stainless steel protective frame, which can adapt to harsh outdoor environments such as high temperature, low temperature, humidity and dust. The working temperature range is -40℃~100℃, which is not easy to demagnetize or damage. It also has anti-vibration and anti-impact performance, and can work stably for a long time in outdoor scenarios such as wind power towers and ships, meeting industrial-grade durability requirements.
