Permanent Customized Size Neodymium Magnetic Grate Food Grade Round Magnetic Filter Hopper

Features:

1. Frame and tube material is 304 or 316L stainless steel, good corrosion resistance and no pollution.

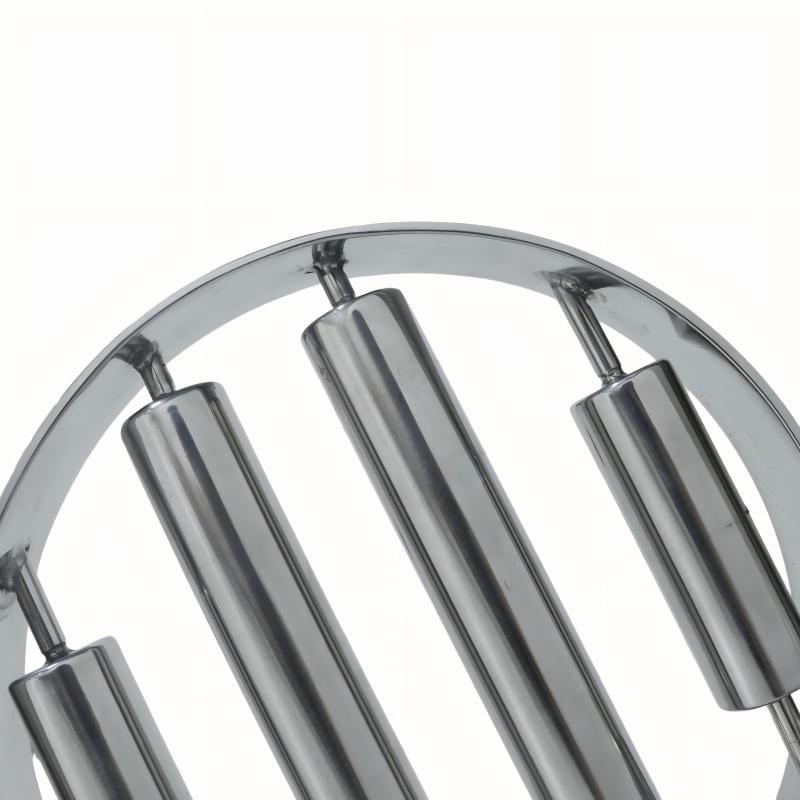

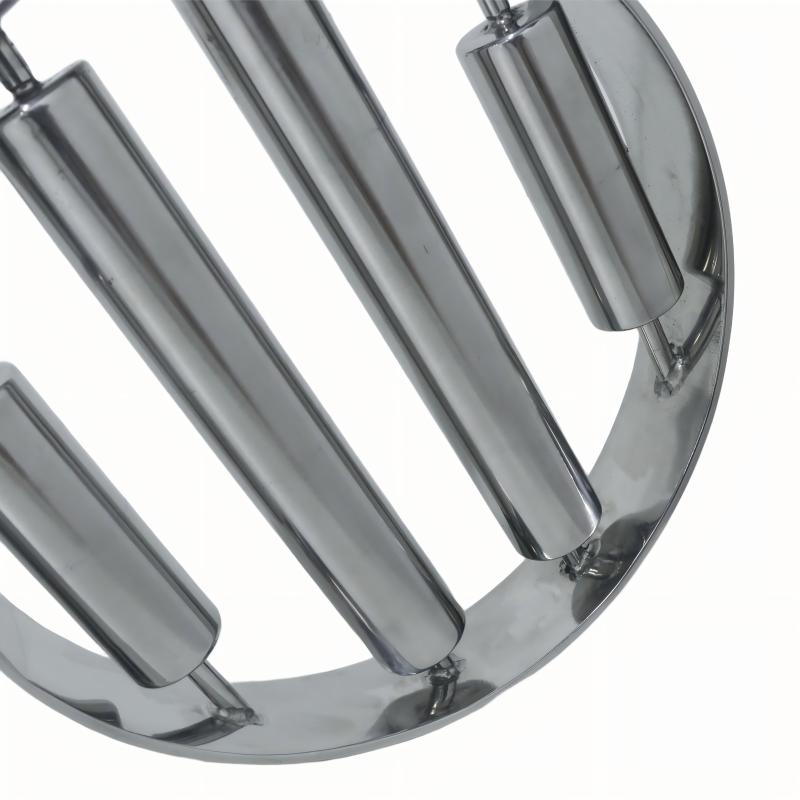

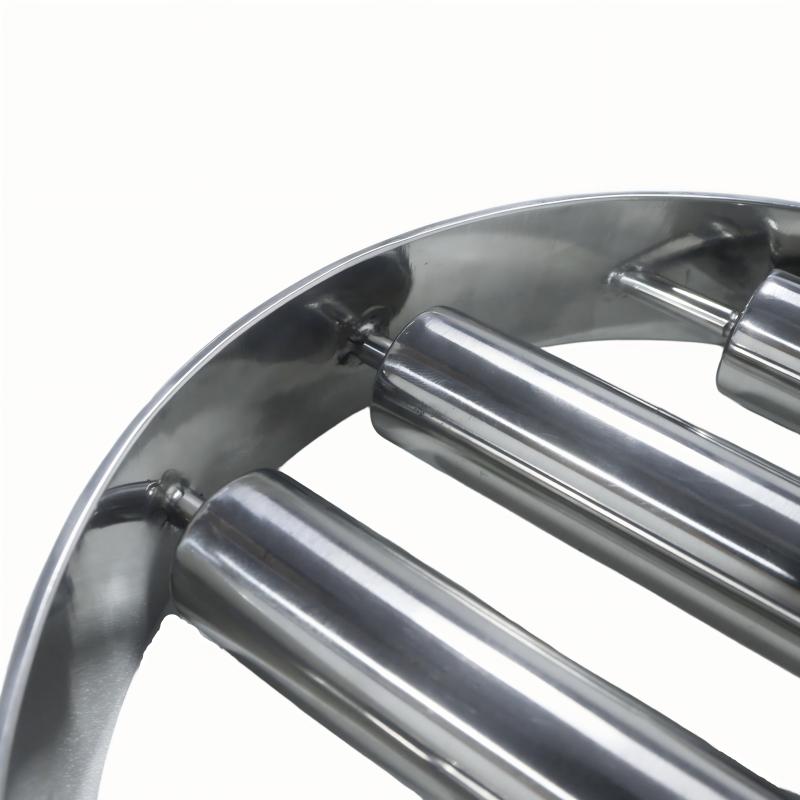

2. Standard magnetic grates are assembled with stainless steel frame and 25mm diameter round bars.

3. The frame and magnetic bar surface can be fine polished and fully welded to meet food grade or pharmacy application. Standard working temperature ≦80℃, if needed, max working temperature from 80℃ to 350℃ is also available.

Special design:

1. Easy-clean design: This design is more expedient for cleaning. Just take out the magnetic core, and the iron impurities will fall from the outer shell.

2. Multiple layers design: The one in the picture is double layers. Of course, more layers, better filter effect.

3. Add a baffle to direct the material onto or close the rods when it flows down. By this way, more contaminants will be attracted. A baffle can be either small rods or 90 degree angle.

4. Adding handles aims for easy operator. Especially with big size which is too heavy to handle. Another advantage of this design is to avoid contaminants dropping down when touched by hand.

Application:

Magnetic Grate is installed or simply laid-inside of hoppers, housings, and bins to trap and hold ferrous fines, fragments, and small metal objects. Please be aware these grates are built for low-abrasion materials.

Specification-Round shape series

* Customization is supported, please provide the following information:

1. Apparent dimension

2. Rod size

3. Operating temperature

4. Surface gauss value

5. Filter substance

6. Quantity

7. Appearance

8. Number of layers

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production. Always final Inspection before shipment.

Q: Why choose us?

* Rich Business Experience

* Excellent Service Spirit

* Fast Shipping Channel

* Abundant Material Resources

* High-quality Product

* Competitive Price
