Pipeline Magnetic Metal Separator For Liquids Or Pastes

Pipeline Magnetic Separator

Basic Concept：

Ensure the continuous cleaning of the production line and the safety of the equipment.

Its structure is compact and maintenance-free, and it is widely used for online iron removal of powder or liquid materials in the food, chemical, plastic and other industries.

Support customization of different magnetic field intensities and pipe diameters to meet the requirements.

Features:

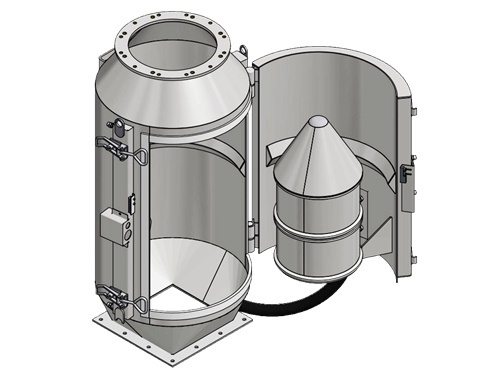

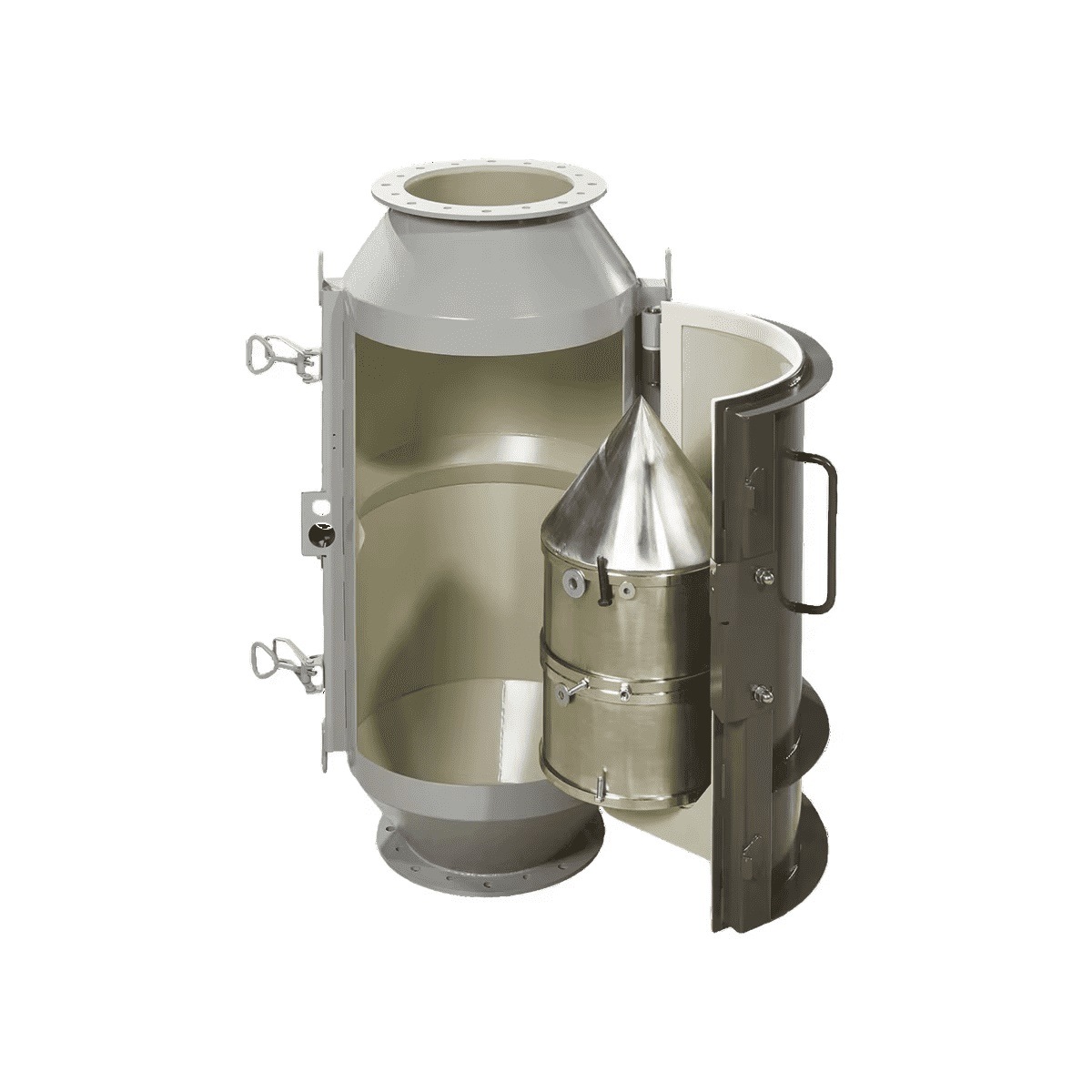

1. Plate Magnets are hinged to the housing like doors, easy cleaning.

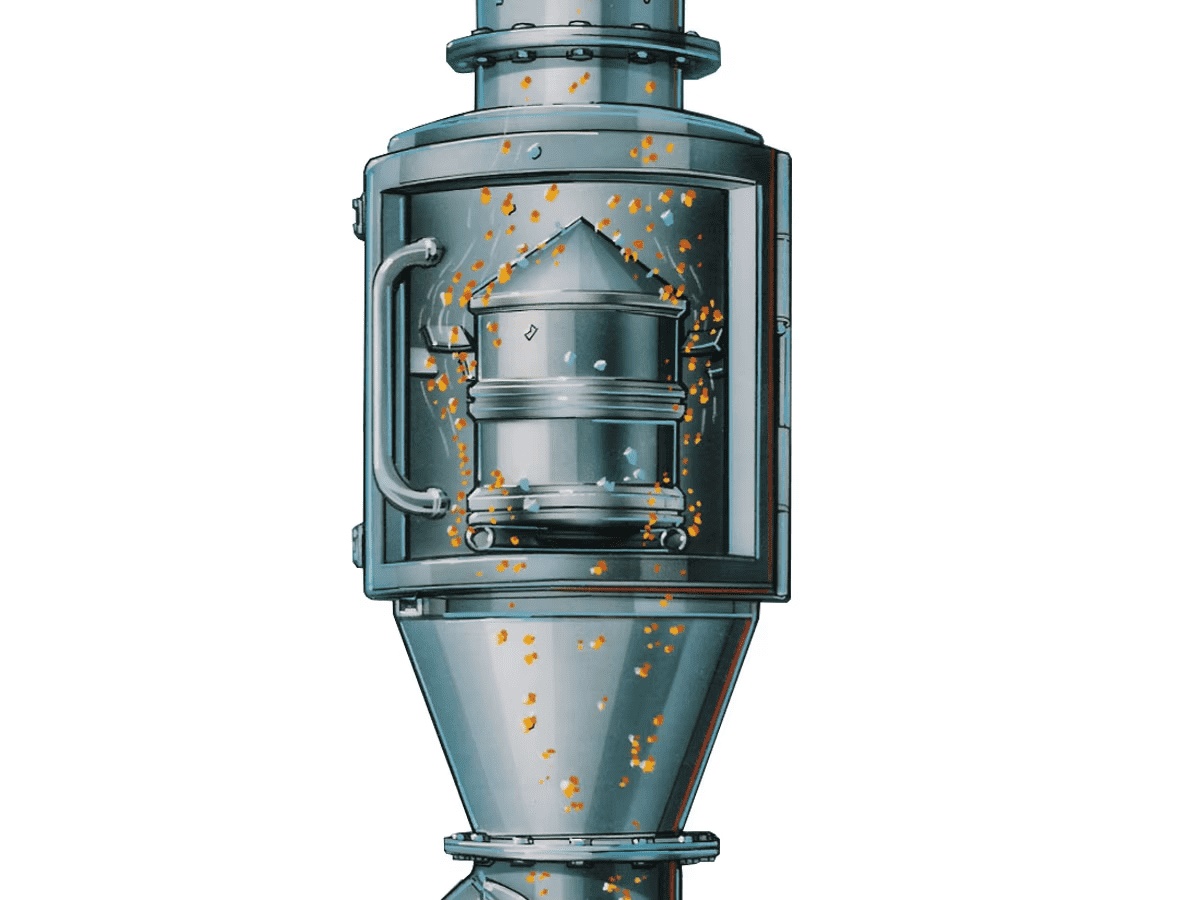

2. A wedge-shaped baffle at the top of the housing can prevents materials from bridging and choking, also can helps break up aggregated products and direct material flow over the units two powerful Plate Magnets.

3. With high power rare earth magnet, plate housing magnets ensure to grab all sizes of contamination firmly.

4.Inlet, outlet or other special can be custom made.

Applications:

Plate Housing Magnets are widely used in the filed of food, pharmacy, tobacco,chemical etc, to remove tramp is iron and ferrous fines from flow-resistant bulk materials that are easy block, The stainless steel housings can be easily installed to enclosed spouting line or directly mounted on processing equipment.

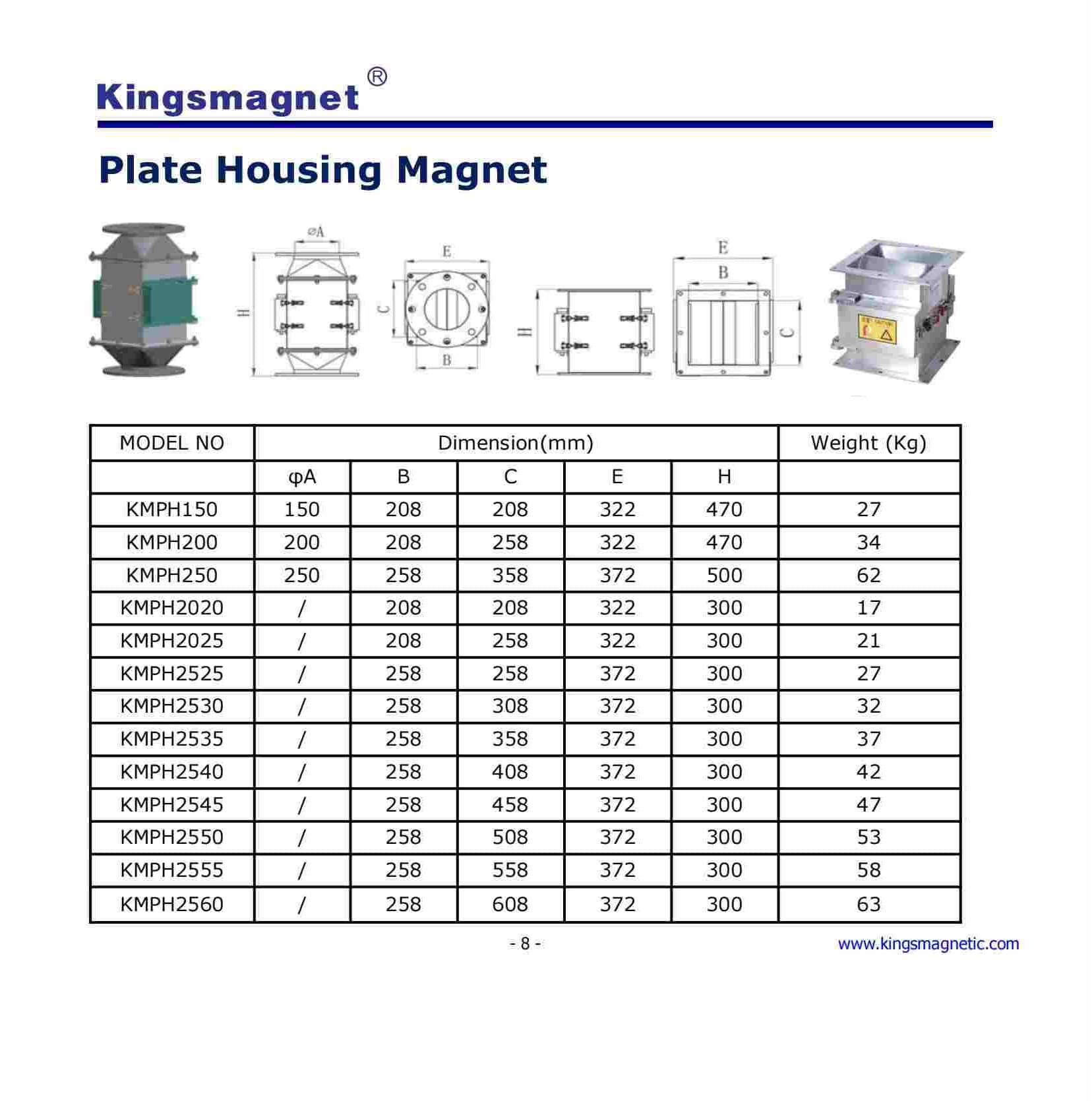

Product Model：

Packaged and Shipping
