SS304/316L Industrial Filter Liquid Trap Magnet Neodymium Magnetic Liquid Filters 8000/10000/12000gGS

Magnetic Liquid Trap, also known as Magnetic Liquid Filter, is an industrial device specially designed to remove ferromagnetic impurities from liquids, semi-fluids or pneumatically conveyed powders. This type of equipment generates a strong magnetic field through a built-in high-strength permanent magnet or electromagnet. When a fluid containing ferrous impurities passes through, the ferromagnetic particles in it will be captured by the magnetic field, thereby achieving fluid purification and equipment protection.

Key Performance Parameter Ranges of Magnetic Liquid Traps

Product Parameters

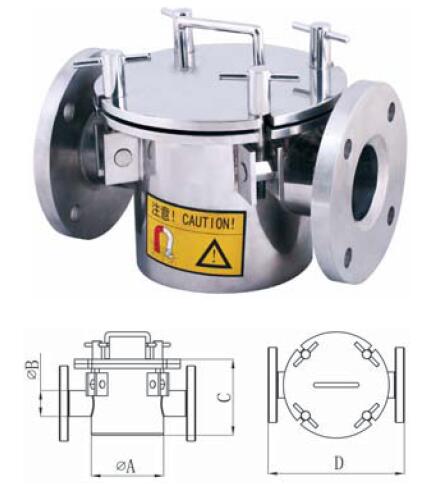

1. N Style Magnetic Liquid Trap

Magnetic Strength: Up to the highest 12,000GS (1.2T)

2. Easy-Clean Magnetic Liquid Trap

Magnetic strength: The highest is 8000GS (0.8T)

*Specification: Size same as N style.

*Consult our professionals to get more accurate product solutions.

FAQ

Q: What is the difference between a magnetic liquid collector and an ordinary filter?

A: The core difference lies in the separation principle:

Ordinary filter: mechanically intercepts impurities through the filter mesh pores, which will cause clogging and pressure drop

Magnetic collector: uses magnetic field to adsorb ferromagnetic particles, zero consumables, no pressure drop, especially suitable for high viscosity fluids (such as chocolate, syrup)

Q: What types of metal impurities can be filtered?

A: Can efficiently remove:

✔ Strong magnetism: iron, low carbon steel, martensitic stainless steel (such as 430)

✔ Weak magnetism: austenitic stainless steel (304/316) (need 12000 Gauss or above model)

✖ Non-magnetic: aluminum, copper, titanium, etc. (need to cooperate with other separation equipment)

Q: Does high viscosity liquid affect the effect?

A: Magnetic separation is not affected by viscosity, but it is recommended to choose a jacket insulation type to prevent solidification.
