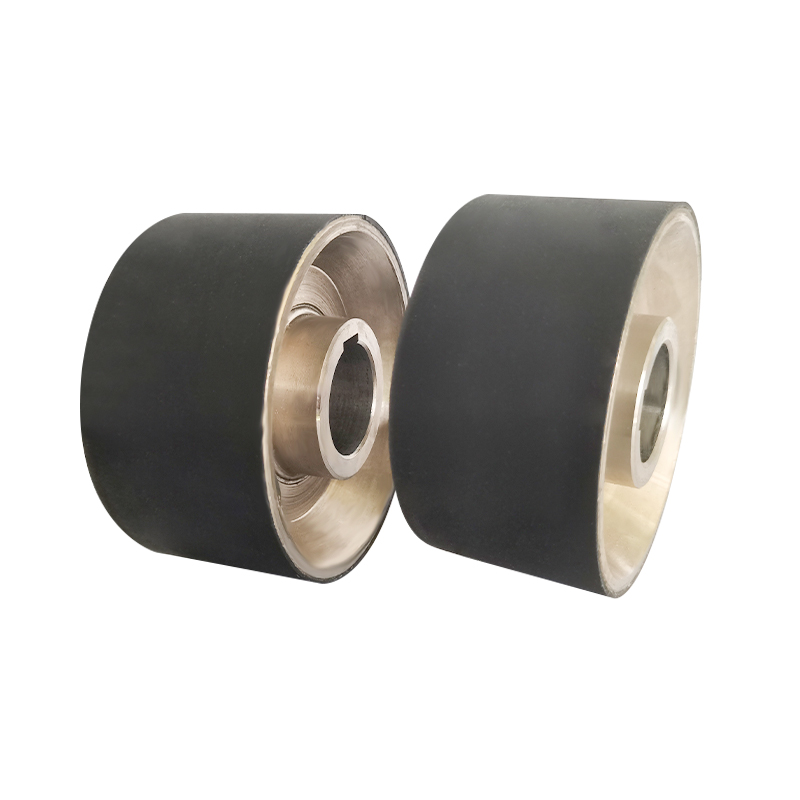

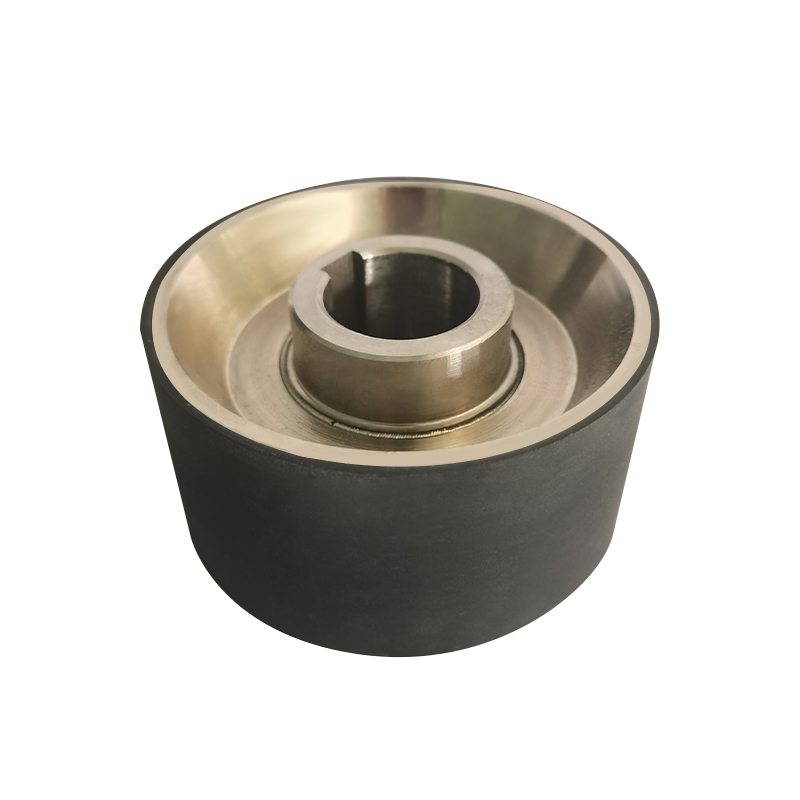

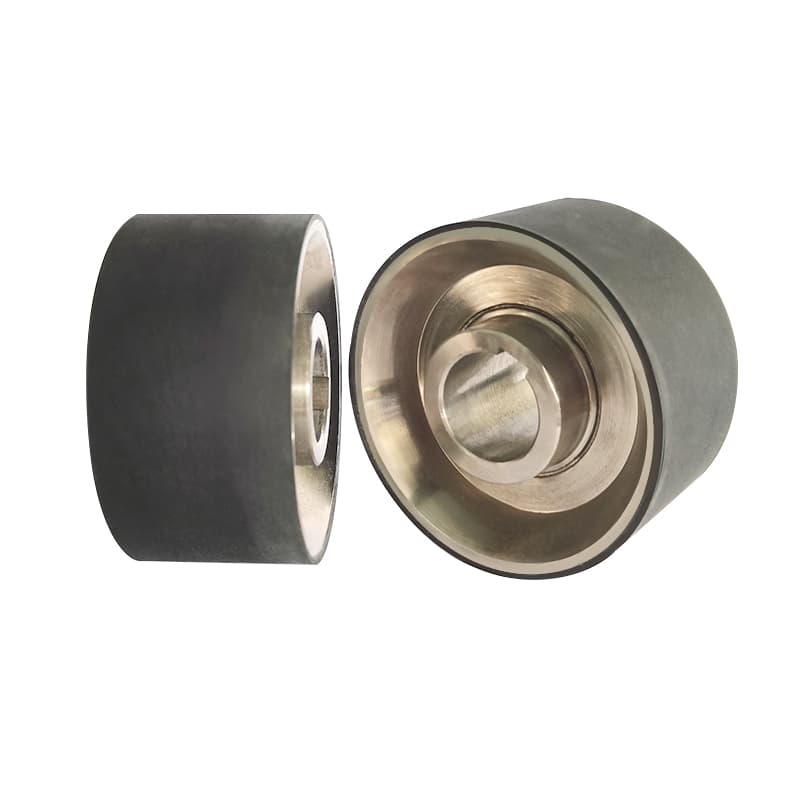

Customized Rubber Magnetic Driving Wheel For Belt Grinder

Magnetic Wheel

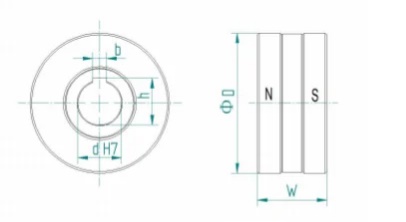

NO.	D (mm)	d (mm)	W (mm)	b (mm)	h (mm)	Force (N)	Temperature (°C)	Weight (Kgs)
KMW25	25	8	16	3	8.6	55	100	0.054
KMW32	32	10	18	4	11.1	80	100	0.10
KMW40	40	12	20	4	13.1	120	100	0.20
KMW50	50	16	25	5	17.3	200	100	0.35
KMW63	63	20	32	6	21.7	330	100	0.70
KMW80	80	25	40	8	26.7	630	100	1.45
KMW100	100	30	50	8	31.7	900	100	2.80
KMW125	125	40	62	12	42.1	1520	100	5.35
KMW160	160	50	80	14	52.6	2940	100	11.40



With the characteristics of zero backlash and high torque density, magnetic wheels maintain stable transmission even in harsh environments, providing long-lasting and low-consumption solutions for automated equipment and clean energy systems.

Rubber coating can be added to the standard parts in the catalogue, but the tensile force will be sent and changed simultaneously.

For specific details, pls consult the salesperson.

Application

Industrial Automation: Robot joints

Wind power generation: Magnetic wheels are used in pitch systems

Electric vehicles: Auxiliary transmission system, reducing mechanical losses

Advantage：

Contactless transmission.

Zero physical wear, extending service life by 3 to 5 times.

High efficiency and energy saving.

Environmental adaptability.

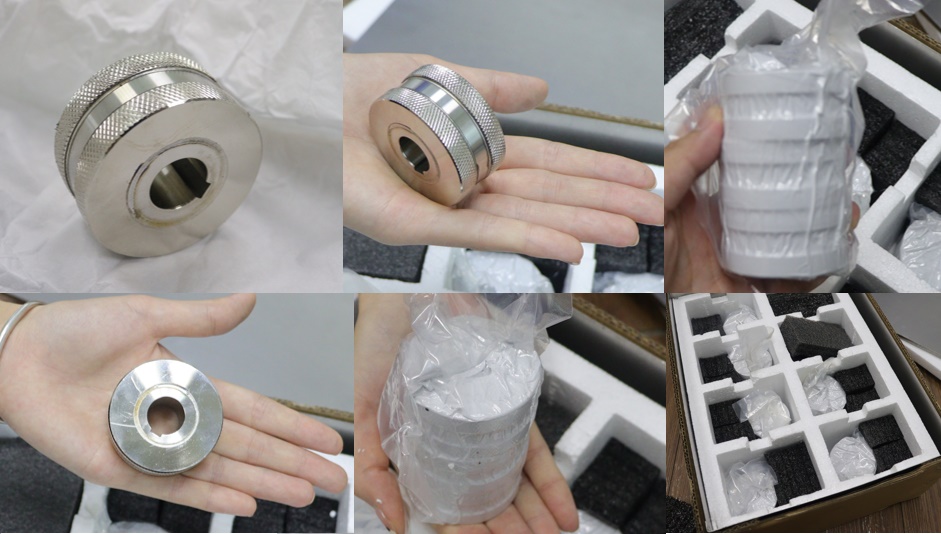

Packaging
