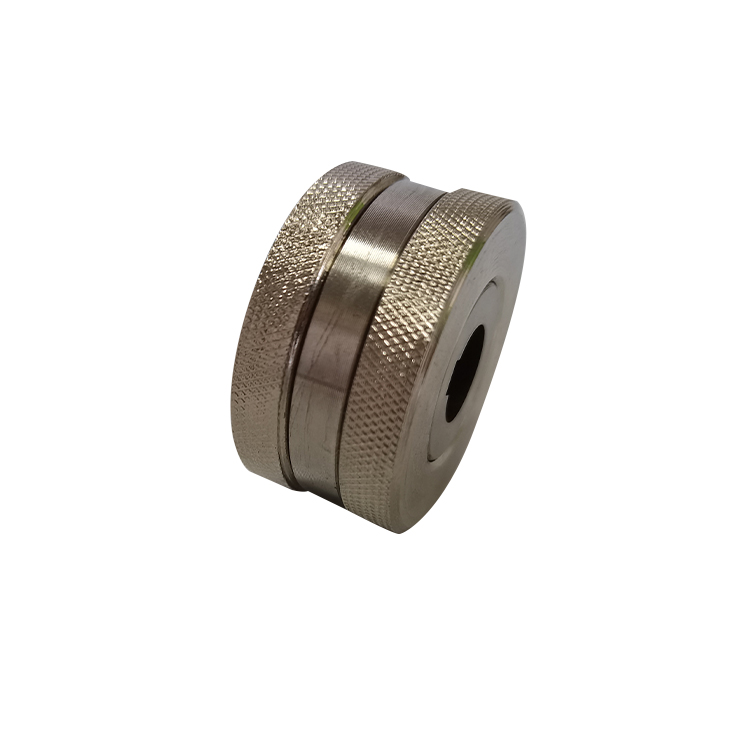

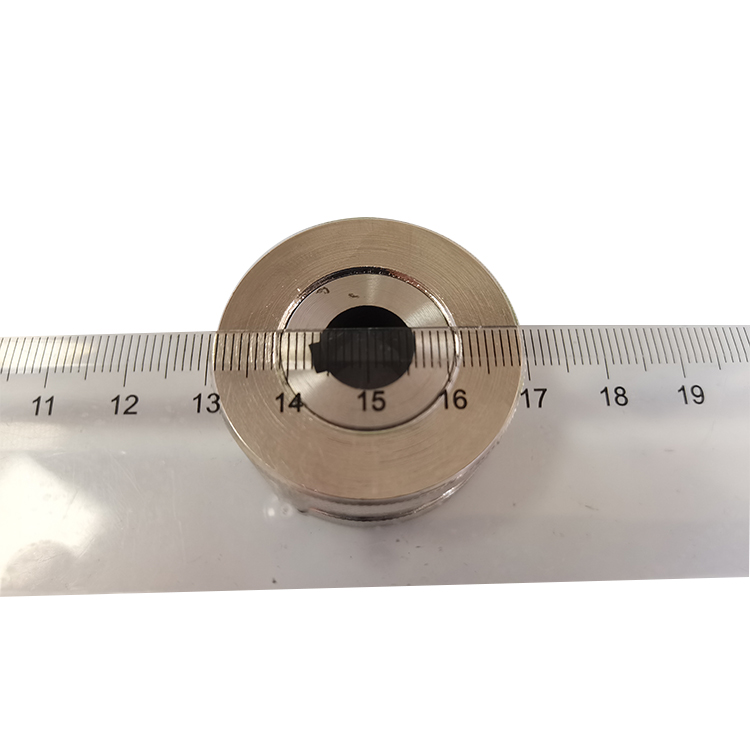

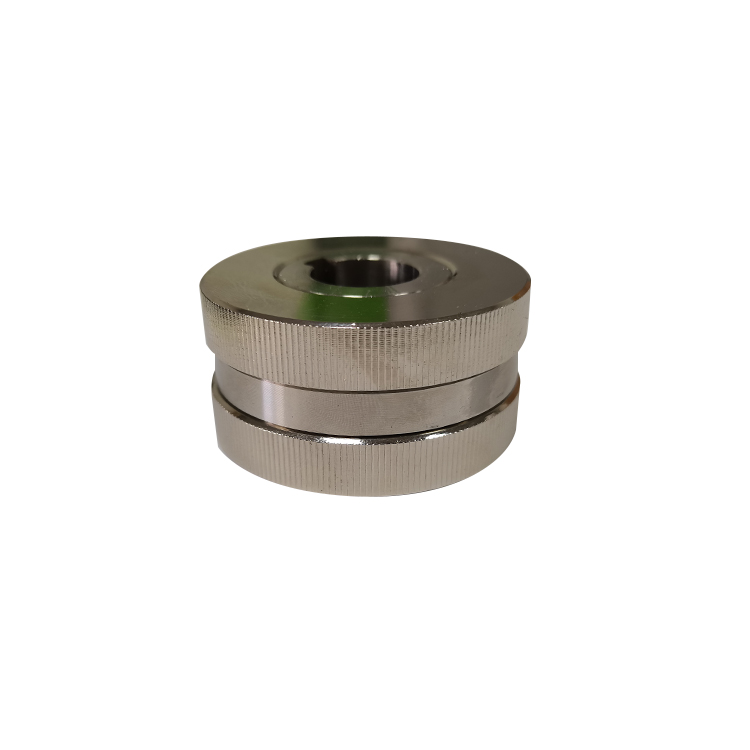

Neodymium Magnetic Drive Wheel For Wall Climbing Robot On Pipe Moving

Magnetic Wheel

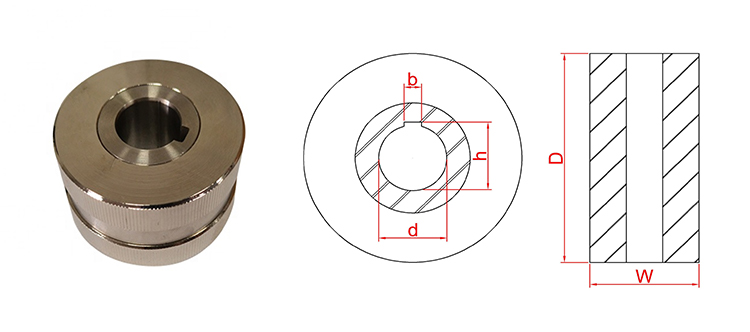

NO.	D (mm)	d (mm)	W (mm)	b (mm)	h (mm)	Force (N)	Temperature (°C)	Weight (Kgs)
KMW25	25	8	16	3	8.6	55	100	0.054
KMW32	32	10	18	4	11.1	80	100	0.10
KMW40	40	12	20	4	13.1	120	100	0.20
KMW50	50	16	25	5	17.3	200	100	0.35
KMW63	63	20	32	6	21.7	330	100	0.70
KMW80	80	25	40	8	26.7	630	100	1.45
KMW100	100	30	50	8	31.7	900	100	2.80
KMW125	125	40	62	12	42.1	1520	100	5.35
KMW160	160	50	80	14	52.6	2940	100	11.40



The forces have been determined at room temperature on a plate in polished steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg ~ 10N). Under normal test condition, the measured force is not lower than the specified value. Value is exceeded in general. Depending on the type of application (installation situation, temperatures, counter anchor etc .) the forces can be influenced enormously. The indicated values are serving as an orientation. Please get advice and help from our experts.

Application

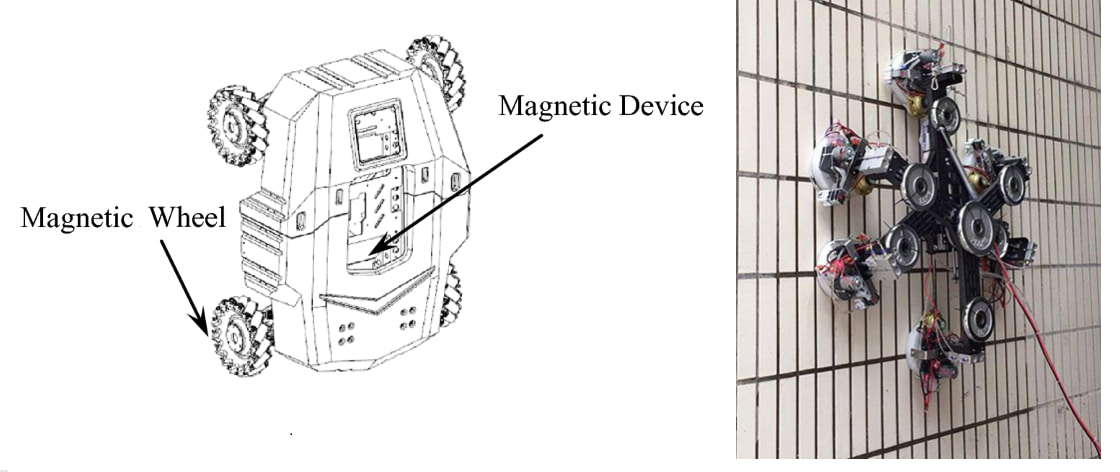

Magnetic wheel is the core of wall mobile robot to complete wall movement, which is used in some high-altitude wall-climbing robots. It is mainly used for inspection or spray painting of large cylindrical cans, or cleaning and spraying of buildings. It is used for inspection and thickness measurement in the nuclear industry, and can also be used in firefighting and shipbuilding industries.

Advantage

• The advantages are large adsorption force, simple design.
• High power transmission capacity, no noise and no replacement parts, can be accompanied by permanent use.
• They are often used in special work environments to replace people to complete inspection work.
