Wall Climbing Robot Magnetic Wheel

1.Product Description

Designed for robots working on steel vertical surfaces, this wall climbing robot magnetic wheel features a high-grade NdFeB permanent magnet core with concentrated magnetic field, no leakage, strong vertical adsorption and excellent load-bearing capacity, ensuring no demagnetization after long-term use.

The wheel body is made with a precision knurled anti-slip metal outer ring. The diamond-shaped knurled texture provides extreme grip, preventing slipping or shifting during movement. It eliminates the risk of rubber coating aging and peeling, offering better wear resistance and impact resistance for heavy-duty and complex working conditions.

With an integrated CNC-machined structure, the central shaft hole and positioning holes are accurately processed, ensuring smooth rotation and low resistance. It is directly compatible with DC motors and reduction motors, and supports customization of outer diameter, thickness, shaft hole specifications and magnetic force to easily match various wall climbing robot frames.

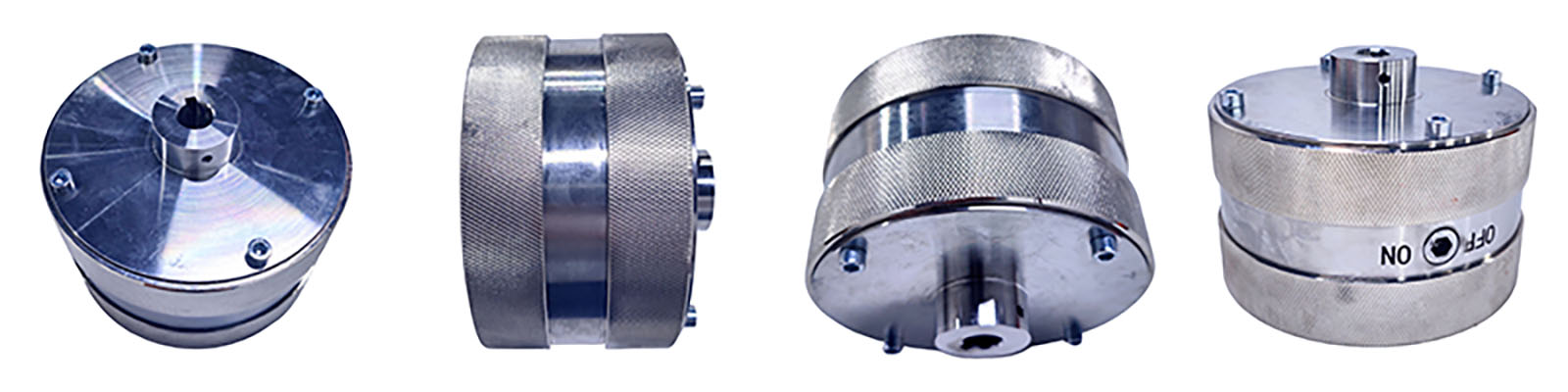

2.Product Display

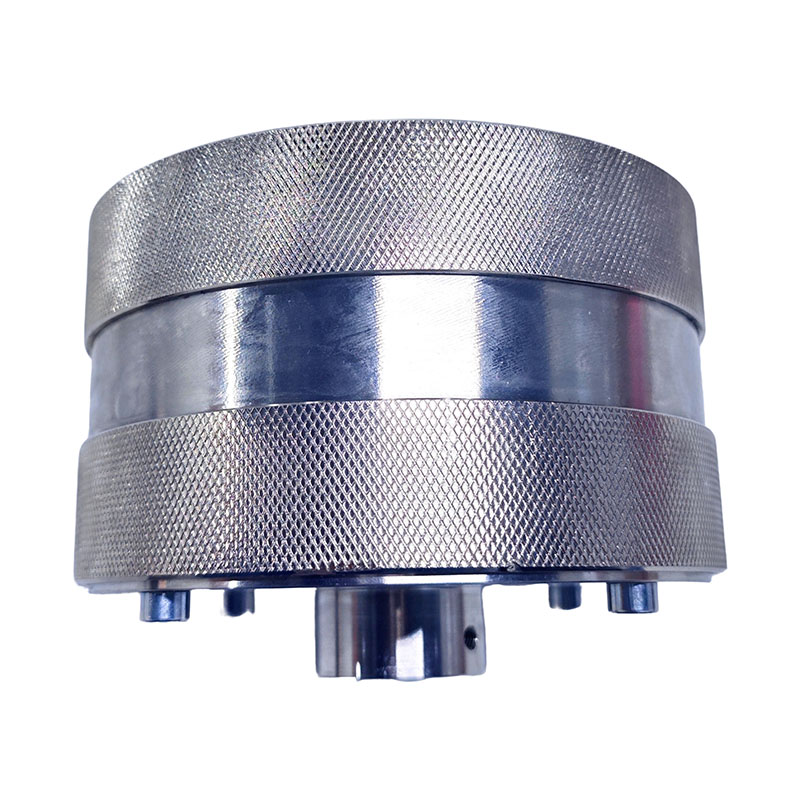

•Overall Appearance: Integrated metal wheel body with bright, burr-free surface and uniform, clear knurled texture, featuring a solid and sturdy feel;

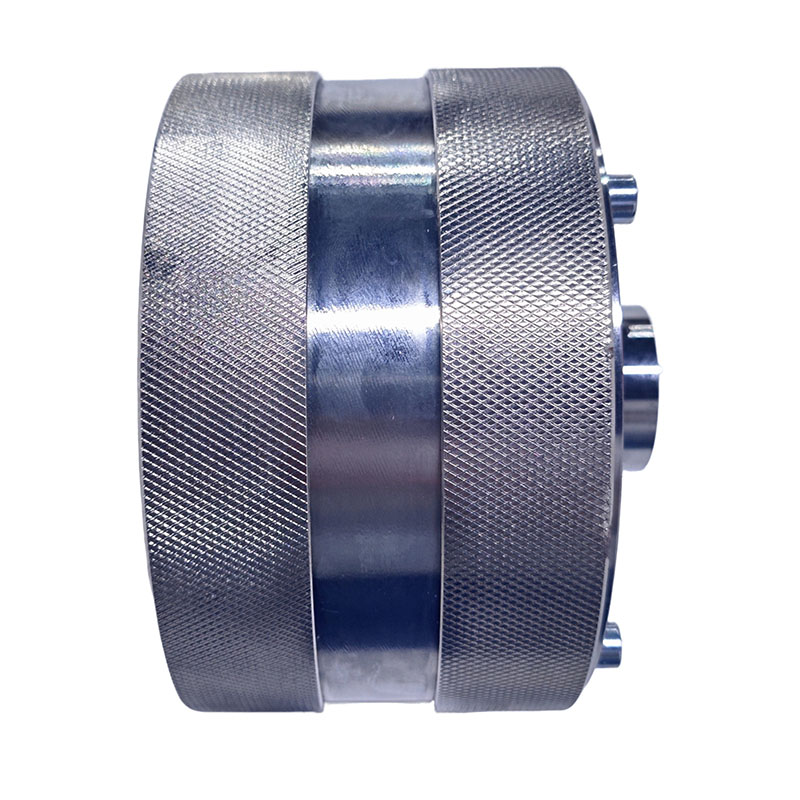

•Knurling Detail: Precision diamond-shaped knurled texture on the outer ring provides maximum grip, preventing slipping or shifting when moving on vertical surfaces;

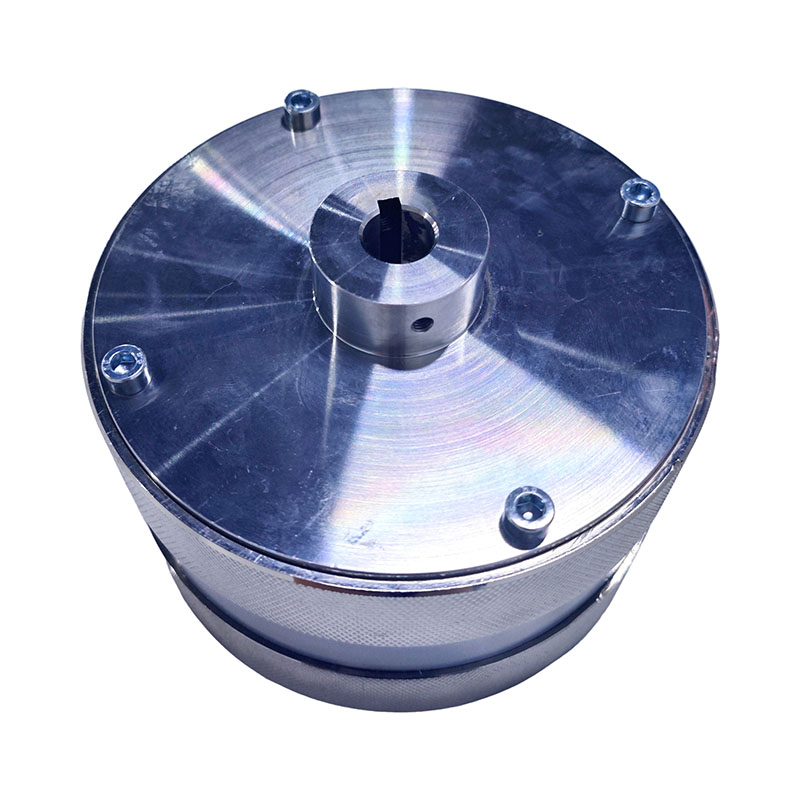

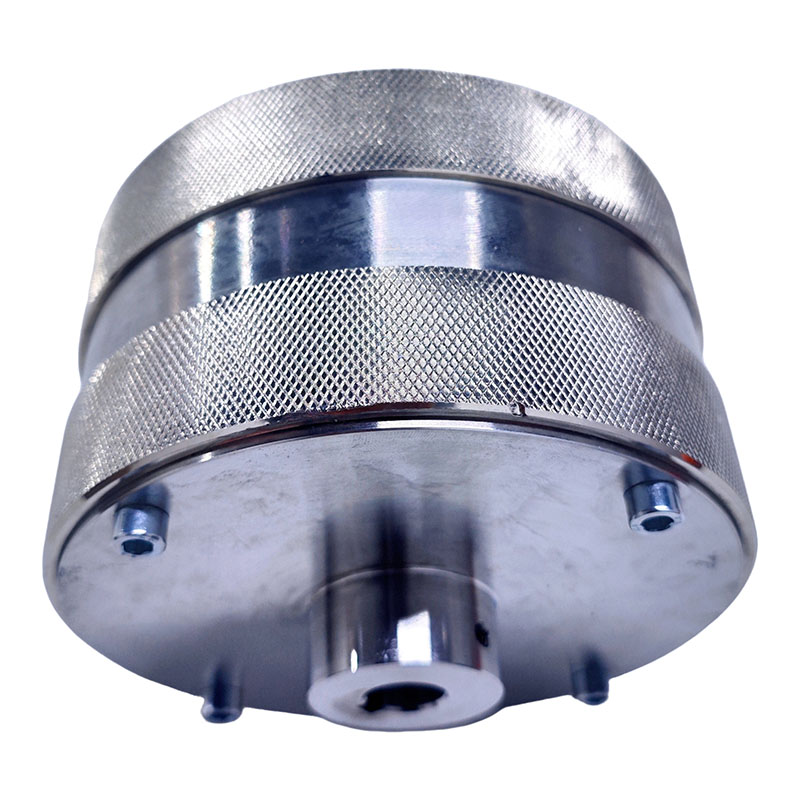

•Mounting Structure: Central shaft hole plus peripheral positioning holes with accurate machining, compatible with various robot frames for easy installation and disassembly;

•Magnetic Performance: Firmly adsorbed on steel vertical planes with no falling off under suspended load, delivering lasting and stable magnetic force for heavy-duty operations.

3.Application Scenarios

•Steel Structure Industry: Wall climbing robots for rust removal, painting and inspection on factory beams and bridge steel frames;

•Marine & Shipyard: Walking and adsorption for cleaning, anti-corrosion and flaw detection robots on ship hulls and decks;

•Chemical Storage Tank: Dedicated magnetic wheels for inspection and anti-corrosion wall climbing equipment on large oil and chemical tanks;

•Building Curtain Wall: Load-bearing walking wheels for exterior cleaning and maintenance robots of high-rise steel buildings;

•Security Inspection: Magnetic walking parts for security patrol robots in large warehouses and steel plants;

•Custom Equipment: Supporting magnetic wheels for research institutes and universities developing all kinds of magnetic wall climbing robots.

4.How to customize

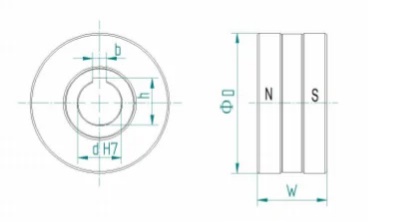

Let us know your requirements，Provide outer diameter, thickness, shaft hole size, required adsorption force, working conditions and robot model of the magnetic wheel.

5.Why Choose Us

•Stable Magnetic Force Without Attenuation: Adopt high-grade NdFeB magnetic core with concentrated magnetic field, no leakage and no demagnetization after long-term use;

•Knurled Anti-slip & Durable: Precision metal knurled outer ring with strong grip, wear and impact resistance, eliminating the risk of rubber aging and peeling;

•Professional Customization Service: Support full-specification customization of size, magnetic force and hole positions, quickly responding to personalized working condition needs;

•Strict Quality Control: Every magnetic wheel passes magnetic force, load and wear tests, with a 99.9% factory qualification rate.

•Industry experience:We have been deeply engaged in the magnetic industry for more than ten years, providing you with professional magnetic solutions.

6.FAQ

Q1: What is the difference between this metal knurled magnetic wheel and the rubber-coated version?

A1: The metal knurled version has no risk of rubber aging or peeling, offering better wear resistance and impact resistance, suitable for heavy-duty, high-temperature or oily conditions; the rubber-coated version operates with lower noise and less wear on the working surface, ideal for light-duty applications.

Q2: Can mounting holes and shaft hole specifications be customized?

A2: Full-specification customization is available. The outer diameter, thickness, central shaft hole and peripheral positioning holes can all be processed according to your drawings.
