CNC Machining Center Work Holding Electro-Permanent Magnetic Chuck for Surface Grinding

A permanent magnetic chuck is a device that uses high-performance permanent magnets to generate strong adsorption force and can firmly fix steel workpieces without an external power supply.

Its features are safety and energy conservation, convenient operation, and magnetic switch control.

Product Parameters

Item No :
OMKC
Order(MOQ) :
1
Payment :
100% in advance
Product Origin :
China
Shipping Port :
XiaMen
Lead Time :
7 days in stock, 30-38 producion time
Weight :
Base on production

Product Details

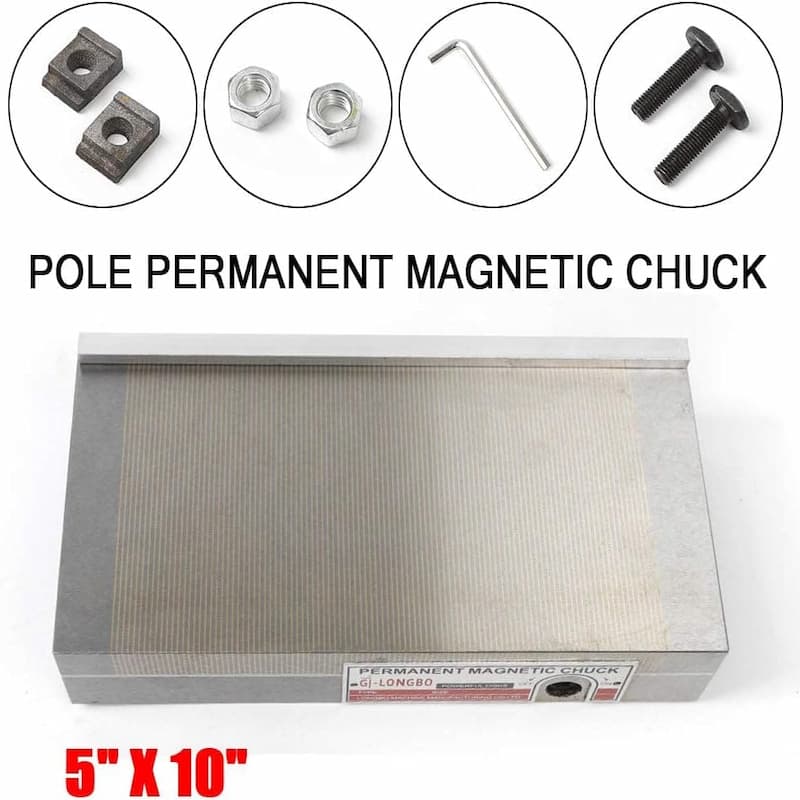

Permanent magnetic chuck

Basic Introduction

High holding power Waterproof construction

Permanent magnetic chuck with neodymium magnets

Parallel fine pole pitch with steel + brass

Reinforced actuating mechanism

Application

Used in surface grinding machine, electric discharge machine, engraving machine, machining center.

Product Features

1. Switch on/off, plane precision of magnetic plate is invariant.

2. Magnetic pole distance is narrow, suitable to small or thin workpiece.

3. High precision, small deformation, satisfy to high precision machining.

4. Magnetic force distributes evenly, max holding force of each pole can reach to 12kgf/cm².

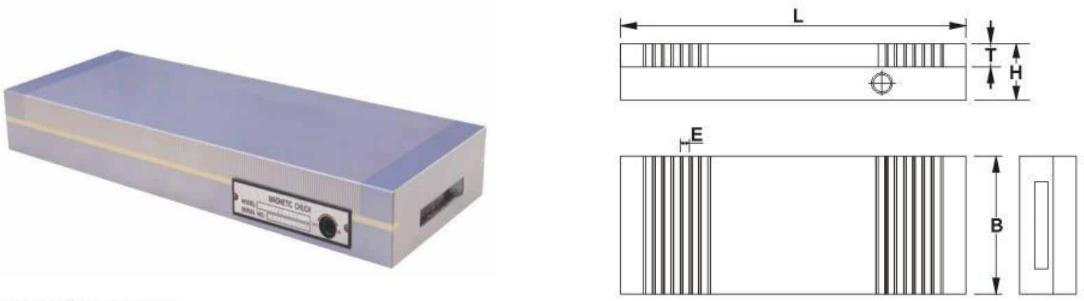

Standard Models

Model	Dimensions (mm)			Panel Thickness (mm)	Polar Distance (mm)	Weight (Kg)
Model	L	B	H	T	E
*OMQC-150300X**	150	300	48	20	0.5+1.5	16.8
*OMQC-150350X**		350	48			19.6
*OMQC-150400X**		400	53			23.8
*OMQC-150450X**		450	53			26.5
*OMQC-200400X**	200	400	53	20		31.8
*OMQC-200450X**	200	450	53	20		39.5
*OMQC-250500M**	250	500	58	20	1+3	53.5
*OMQC-300600M**	300	600	58	20	1+3	77.0
