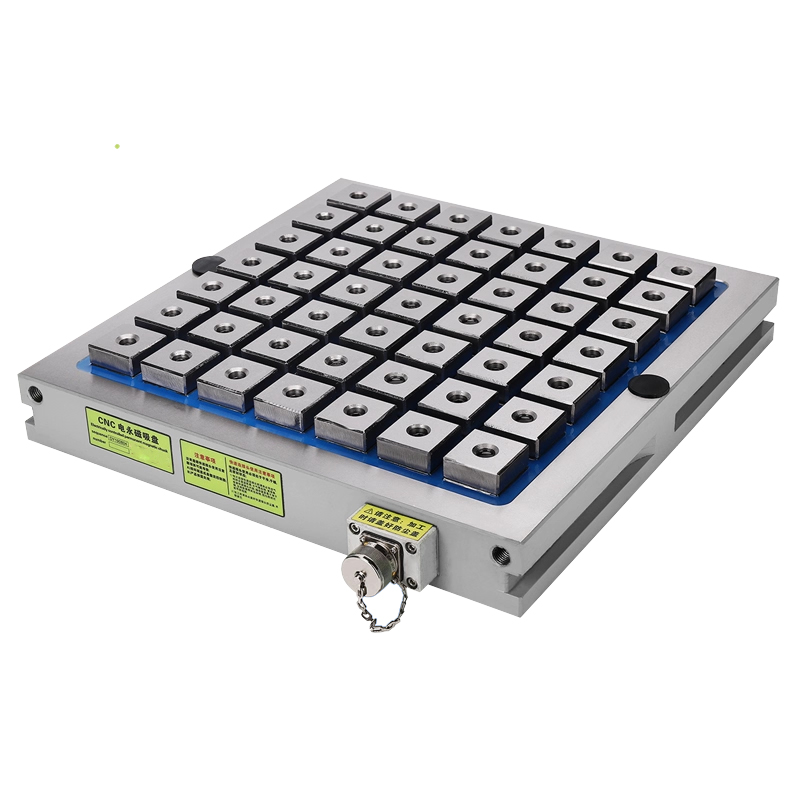

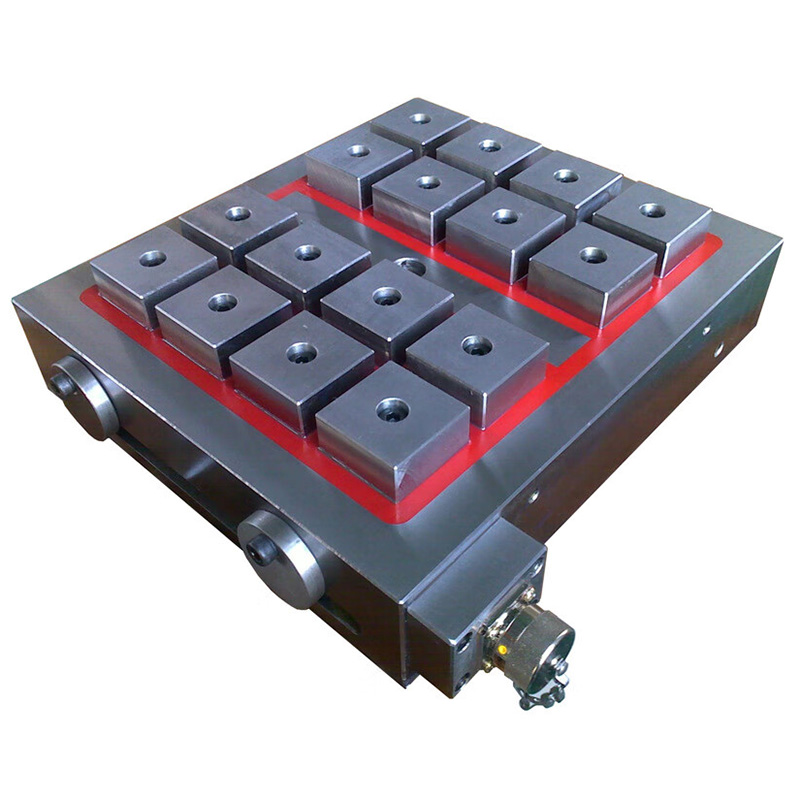

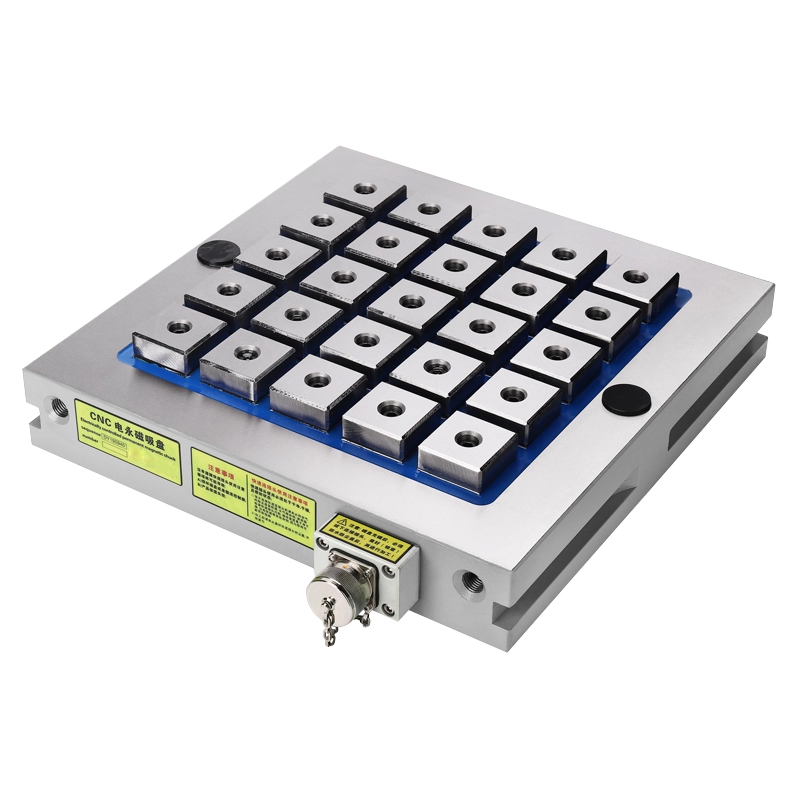

Supper Suction Powerful Electro Permanent Magnetic Chuck for CNC Milling

A permanent magnetic chuck is a device that uses high-performance permanent magnets to generate strong adsorption force and can firmly fix steel workpieces without an external power supply.

Its features are safety and energy conservation, convenient operation, and magnetic switch control.

Product Parameters

Item No :
DYZ50
Order(MOQ) :
1 Set
Payment :
100% in advance
Product Origin :
China
Lead Time :
20-30 days

Product Details

Application

For CNC milling center, milling machines, planomiller.

Product Features

1. The body and plate are processed integrally, excellent steel character, high precision and stable.

2. Permanent magnet attract workpiece, no danger if out ofelectricity.

3. Irregular workpiece can be held with assistance of custom made padding block.

4. Waterproofness is good, no water seepage, no electric leakage.

5. Max holding force of each pole can reach to 350kgf.

Standard Models

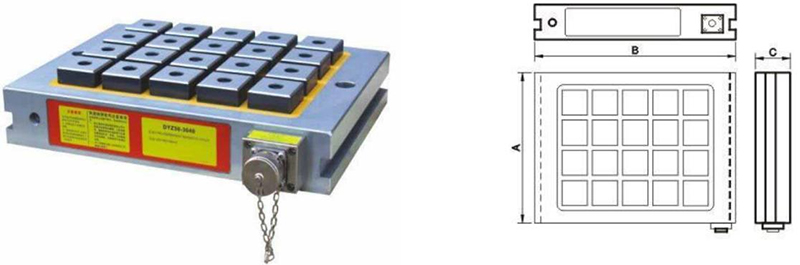

Model	Dimensions(mm)			Number of poles		Weight
	A	B	C	50	70	(Kg)
DYZ50-2540	240	430	68	18	8	52
DYZ50-2560	240	600	68	24	12	72
DYZ50-2580	240	810	68	33	16	99
DYZ50-25100	240	1000	68	42	20	120
DYZ50-3030	300	310	68	16	9	47
DYZ50-3040	300	430	68	24	12	65
DYZ50-3050	300	500	68	24	15	80
DYZ50-3060	300	600	68	32	18	90
DYZ50-3080	300	810	68	44	24	123
DYZ50-30100	300	1000	68	56	30	151
DYZ50-4040	420	430	68	36	16	92
DYZ50-4050	420	500	68	42	20	105
DYZ50-4060	420	600	68	48	24	126
DYZ50-4080	420	810	68	66	32	173
DYZ50-40100	420	1000	68	84	40	211
DYZ50-5060	490	590	68	56	30	144
DYZ50-5080	490	810	68	77	40	197
DYZ50-50100	490	1000	68	98	50	241
DYZ50-6060	600	600	68	64	36	180
DYZ50-6080	600	810	68	99	48	246
DYZ50-60100	600	1000	68	126	60	301
DYZ50-8080	755	810	68	121	72	301
