Achieving "Zero Impurities" in Food & Pharma: How to Choose the Right Magnetic Separators

Introduction

In the food and pharmaceutical industries, tiny ferrous metal impurities from machinery abrasion and raw material contamination are major compliance and safety hazards. These micro contaminants easily trigger product disqualification, GMP audit failures, and costly brand losses. Achieving reliable zero impurity magnetic filtration relies entirely on selecting a professional food pharma magnetic separator. Different types of magnetic separators including Belt Permanent Magnetic Separator, Drawer Magnetic Separator, Magnetic Grate，Pipeline Magnetic Separator and Magnetic Liquid Trap fit completely different production links. This article summarizes production pain points, equipment differences, core advantages and selection tips to help factories implement standardized hygienic magnetic separation for stable compliant production.

1. Critical Industry Pain Points in Food & Pharma Metal Removal

Most food and pharma manufacturers struggle with incomplete metal removal and hygiene risks in daily production. Many factories only equip a single type of magnetic separator, causing serious matching errors. Traditional equipment cannot support effective fine metal contaminant removal, leaving micron-scale iron powder and wear debris undetected and causing unqualified batches. Non-standard equipment lacks hygienic structure, forming cleaning dead corners that lead to material accumulation and secondary pollution, failing GMP and food safety audits. Conventional filters deliver unstable magnetism and low efficiency, unable to meet strict zero-impurity standards. Improper equipment matching also causes frequent shutdowns, raising labor costs and lowering overall output efficiency.

2. Mainstream Magnetic Separator Types & Application Differences

Food and pharmaceutical production includes solid powder, granular materials, liquid materials and bulk conveyor materials. Each scenario requires a targeted GMP compliant magnet separator. The five most widely used hygienic models are Belt Permanent Magnetic Separator, Pipeline Magnetic Separator, Drawer Magnetic Separator, Magnetic Grate, and Magnetic Liquid Trap. Each type has unique structural advantages and applicable working conditions for accurate zero impurity magnetic filtration and hygienic magnetic separation, solving different metal contamination pain points in food and pharma production lines.

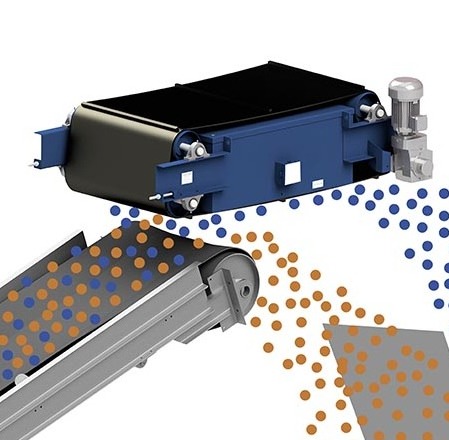

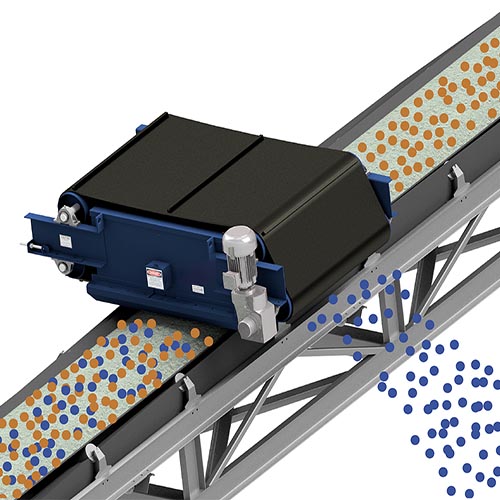

2.1 Belt Permanent Magnetic Separator

Belt Permanent Magnetic Separators are designed for large-volume bulk material conveying lines. Featuring automatic iron removal and self-cleaning functions, they can continuously adsorb and discharge large iron blocks, iron nails and mechanical wear debris without manual cleaning. It is widely installed above conveyor belts for raw material pre-filtering, suitable for grain, flour, raw sugar and bulk food raw material pretreatment.

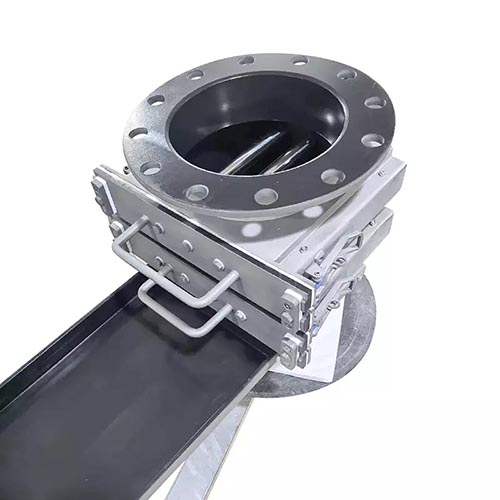

2.2 Drawer Magnetic Separator

Drawer Magnetic Separators are the most classic high precision magnetic filter for powder and granular material fine filtration. Multi-layer magnetic tube arrangement forms a high-density magnetic field, which can capture micron-level fine iron powder. The pull-out drawer structure enables fast disassembly and thorough cleaning without dead corners, fully complying with GMP hygiene standards. It is the mainstream equipment for pharmaceutical powder, milk powder, seasoning and fine food processing.

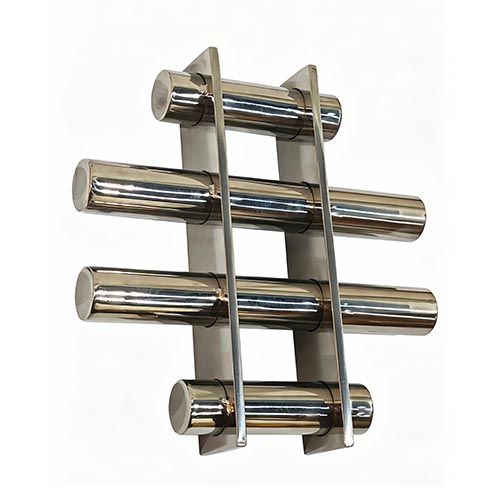

2.3 Magnetic Grate

Magnetic Grate adopts simple grid magnetic tube combination, installed in hoppers, silos and discharge ports. It is low-cost, easy to install and suitable for preliminary impurity removal of conventional materials. It mainly removes medium and large iron particles and is often used as primary filtration before fine magnetic separation.

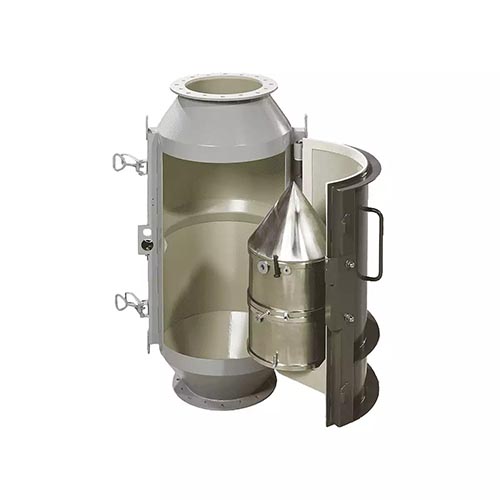

2.4 Pipeline Magnetic Separator

Pipeline Magnetic Separator is a universal inline magnetic filtering device installed directly on material conveying pipelines, suitable for both semi-fluid granular materials and low-viscosity liquid materials. It features fully sealed pipeline integration, no material leakage, no dust accumulation and no sanitary dead corners. With medium and high magnetic strength design, it can remove medium and fine ferrous impurities in continuous conveying materials, balancing filtration efficiency and production continuity. It is widely used for inline impurity removal in grain processing, food seasoning and general pharmaceutical pipeline transmission lines.

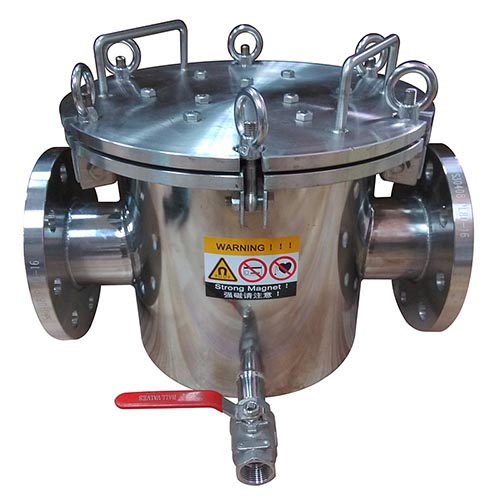

2.5 Magnetic Liquid Trap

Magnetic Liquid Trap is specially developed for liquid fluid materials such as syrup, beverage, edible oil and pharmaceutical liquid. The fully sealed pipeline structure has no material leakage and no sanitary dead corners. It can efficiently remove fine iron impurities in flowing liquid, ensuring liquid product clarity and qualification rate, and is a necessary hygienic facility for liquid food and pharmaceutical production lines.

3. Performance & Application Comparison Table

This table intuitively distinguishes the five mainstream magnetic separators to help engineers and purchasers complete rapid and accurate food pharma magnetic separator selection.

4. Professional Zero-Impurity Selection Guidelines

To achieve stable zero-impurity production, manufacturers must select a matched food pharma magnetic separator according to production processes. Bulk raw material conveyor lines adopt Belt Permanent Magnetic Separators; pipeline semi-fluid conveying lines are equipped with Pipeline Magnetic Separators; powder and fine particle workshops prioritize Drawer Magnetic Separators as the core high precision magnetic filter; low-viscosity liquid production lines must install Magnetic Liquid Traps; conventional silo feeding ports are equipped with Magnetic Grates for primary protection. All selected equipment must be GMP compliant magnet separator certified, adopting fully sealed structures to support long-term, stablehygienic magnetic separation and consistent zero impurity magnetic filtration results with minimal downtime.

FAQ

Q1: What is the difference between drawer separator and magnetic grate?

A1: Magnetic Grate is simple in structure, suitable for primary coarse filtration of large impurities. Drawer Magnetic Separator adopts multi-layer dense magnetic tubes, featuring higher precision and dead-corner-free quick cleaning, which is professional high precision magnetic filter for fine powder fine metal contaminant removal and GMP workshop production.

Q2: Is belt permanent magnetic separator suitable for powder production?

A2: No. Belt Permanent Magnetic Separator is only for large-volume bulk solid conveyor lines to remove large iron blocks and iron scraps. It cannot capture ultra-fine iron powder. Powder workshops must use Drawer Magnetic Separator for high-precision purification.

Q3: Can multiple magnetic separators be used in combination?

A3: Yes. The best zero-impurity solution is graded multi-equipment matching: Magnetic Grate + Belt Separator for front coarse filtration, Pipeline Magnetic Separator for inline medium-fine impurity removal, Drawer Magnetic Separator for powder high-precision fine filtration, and Magnetic Liquid Trap for ultra-precise liquid purification. The combined solution ensures full-link hygienic magnetic separation and stable GMP compliance.
