Belt Separator

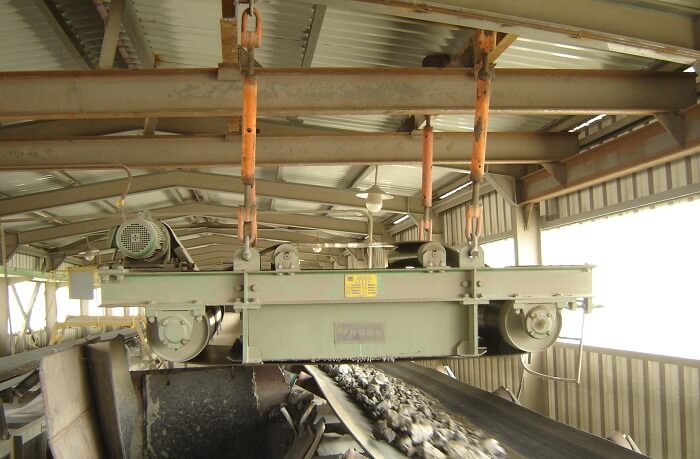

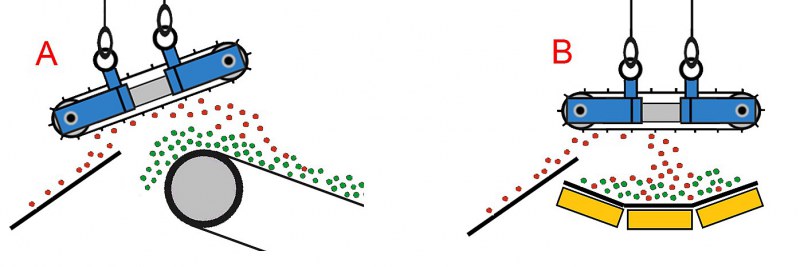

The belt separator is composed of a permanent magnet system, a drive belt and a drive device. When materials or sludge mixed with ferromagnetic particles flow through the equipment, the magnetic field adsorbs the iron impurities on the surface of the magnetic poles. With the rotation of the belt, they are carried away from the main material flow. In the non-magnetic area, the impurities are automatically removed by the scraper or its own gravity, achieving continuous iron removal.

1. Core Advantages

• Auto self-clean scraper belt design, 24h continuous iron removal, no production line shutdown for manual cleaning
• Magnetic core: High coercivity sintered NdFeB, standard surface magnetism 8000–12000Gs, electromagnetic type up to 15000Gs
• Heavy-duty rubber scraper belt, wear-resistant, anti-tear, long service life
• Integral steel frame structure, stable hoisting, shock resistant for harsh mining environment
• Custom magnetic width, suspension height, belt speed according to customer conveyor parameters
• Low failure rate, simple daily maintenance, adapt to high dust, high temperature open-air workshop

2. Technical Parameter Tables

Permanent Magnet Belt Separator Standard Serie

Customization is supported

3. Application Industries

• Mining & Aggregate Crushing: Stone crusher front tramp iron removal, ore raw material purification
• Cement Industry: Cement clinker, raw meal conveying belt iron separation
• Solid Waste & Plastic Recycling: Waste plastic, construction waste, garbage sorting metal separation
• Coal Industry: Raw coal conveying belt iron impurity capture, protect coal mill
• Construction Materials: Quartz sand, river sand, aggregate production line
• Fertilizer & Chemical Bulk Material: Dry granular chemical raw material iron removal

FAQ

Q1: How to select the correct model matching my conveyor belt?

Provide 4 core parameters for accurate model matching:

• Actual width of your conveyor belt
• Maximum material thickness passing on the belt
• Suspension height space between magnet and material surface
• Iron impurity content (light / medium / heavy iron scraps)
