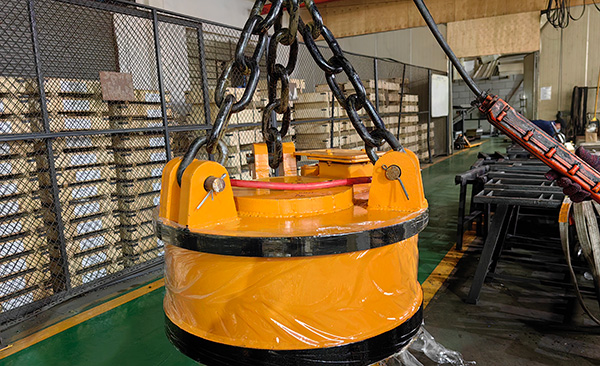

Electromagnetic Lifter

May 10, 2025

Electromagnetic lifter is equipped with a coil inside. When it is energized, a strong magnetic field is generated inside the coil, firmly attracting ferromagnetic objects (such as steel plates, billets, scrap steel, etc.) at the bottom. After the power is cut off, the magnetic field disappears and the object is released automatically.
Electromagnetic lifters are usually equipped with an electromagnetic disconnection retention device or a battery-powered control system to prevent material drops caused by sudden power outages and enhance safety. It is widely used in industries such as metallurgy, machinery, and scrap steel recycling.

1. Core Advantages

Large lifting tonnage range, strong magnetic penetration, suitable for thick steel and mixed scrap steel
Fully sealed cast steel shell, wear-resistant, shock resistant, dustproof and rainproof for outdoor workshop
Stable DC electromagnetic coil, low heating rate, long continuous working time
Equipped with special rectifier control cabinet, support emergency power-off protection to prevent accidental falling
Round magnetic pole layout, uniform suction force, less material slipping during lifting
Multiple installation modes: overhead crane hanging, forklift boom mounting
Complete series from small tonnage to super large tonnage, non-standard size customization available

2. Technical Parameter Tables

Main technical data for normal temperature(used under normal temperature, power-on sustainting rate TD-50% Voltage DC-220V):

Model	Item Unit	KMW5-70L/2	KMW5-80L/2	KMW5-90L/2	KMW5-110L/2	KMW5-120L/2	KMW5-130L/2	KMW5-135L/2	KMW5-150L/2	KMW5-165L/2	KMW5-180L/2	KMW5-185L/2	KMW5-210L/2	KMW5-240L/2
Overall Dimension (mm)	A	700	800	900	1100	1200	1300	1350	1500	1650	1800	1850	2100	2400
	B	824	824	1115	1350	1180	1280	1250	1320	1630	1515	1515	1912	2080
	C	160	160	200	220	220	250	250	350	370	370	370	400	450
	D	90	90	125	150	150	175	175	210	230	230	230	250	280
	E	30	30	40	45	45	50	50	60	75	75	75	80	90
Weight	kg	520	350	900	1500	2150	2300	2860	3200	3700	4530	4900	7200	9500
Cold-state Power	Kw	2.81	3.54	4.51	6.05	7.9	8.93	10.6	11.3	13.3	20.9	21.6	22.91	26
Lift Capacity (Cold/Hot State) - Rated Voltage Mode	Cold-state Current (A)	12.77	16.1	20.5	27.5	36	40.6	48	51.4	60.6	95	98	104	118.6
	Steel Dall (kg)	2500	3000	4500	6500	7500	8500	9000	11000	12500	14500	15000	21000	23000
	Steel Ingot (kg)	380/200	480/250	600/400	1000/800	1200	1400/1100	1500	1900/1500	2300/1800	2750/2100	3000	3500/2800	4800/3800
	Scraps (kg)	120/100	150/130	250/200	450/400	600	700/600	900	1100/900	1300/1100	1600/2100	1700	2200/1850	2850/2250
Equipment Completeness	Control Equipment	STML-4E-C	STML-4E-C	STQL-7E-C	STQL-7E-C		STQL-14E-C	STQL-14E-C	STQL-14E-C	STQL-14E-C	STQL-25E-C	STQL-25E-C	STQL-25E-C	STQL-32E-C
	Cable Reel	JTA50-10-20	JTA50-10-20	JTA100-15-2	JTA100-15-2	JTA100-15-2	JTA100-15-2	JTA100-15-2	JTA100-15-2	JTA100-15-2	JTA200-15-2	JTA200-15-2	JTA200-15-2	JTA200-20-2
	Cable Adapter	DL-102	DL-102	DL-102	DL-102	DL-102	DL-102	DL-102	DL-102	DL-102	DL-102	DL-102	DL-102	DL-102

Customization is supported

3. Application Industries

Steel Mill & Steel Plant: Hot steel billet, cold rolled steel plate, steel coil handling
Metal Scrap Recycling Yard: Mixed steel scrap, steel fragment bulk lifting
Shipbuilding Industry: Steel structural plate, ship steel plate hoisting
Machinery Foundry: Cast iron block, steel casting workpiece transportation
Port & Logistics: Steel pipe, steel ingot cargo loading and unloading
Hardware Processing Factory: Medium & thick steel plate blanking workshop

FAQ

Q1: What is the difference between electromagnetic lifter and permanent magnetic lifter?

Electromagnetic Lifter: Rely on DC power supply to generate suction, large tonnage, deep magnetic penetration, suitable for scrap steel and heavy thick steel; need supporting control cabinet, power consumption during working.

Permanent Magnetic Lifter: No power supply required, small and light, only for flat neat steel plates, limited lifting capacity, cannot grab irregular scrap metal.
