Drawer Magnetic Separators

May 08, 2025

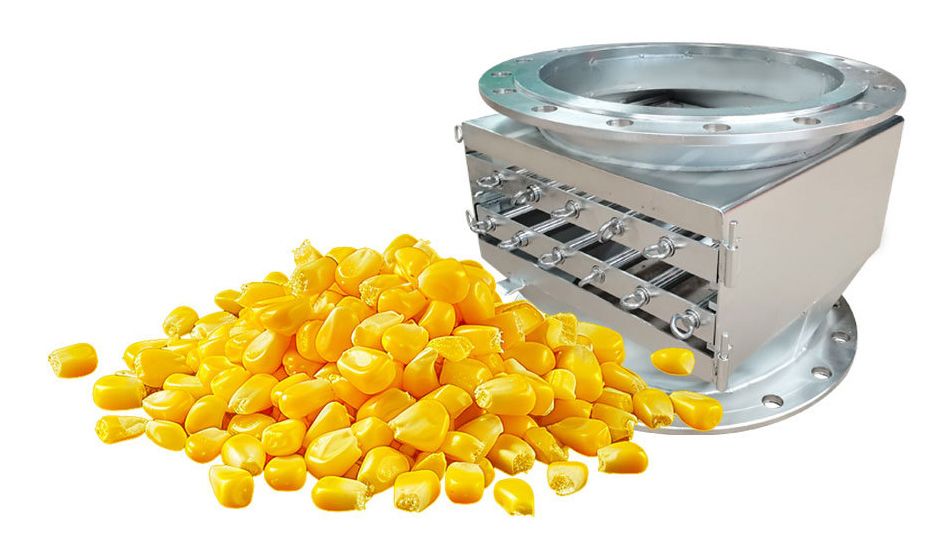

Drawer magnetic separators are usually installed in the discharge port of powder or granular materials, which are suitable for removing iron from dry materials such as flour, milk powder, granules, etc..

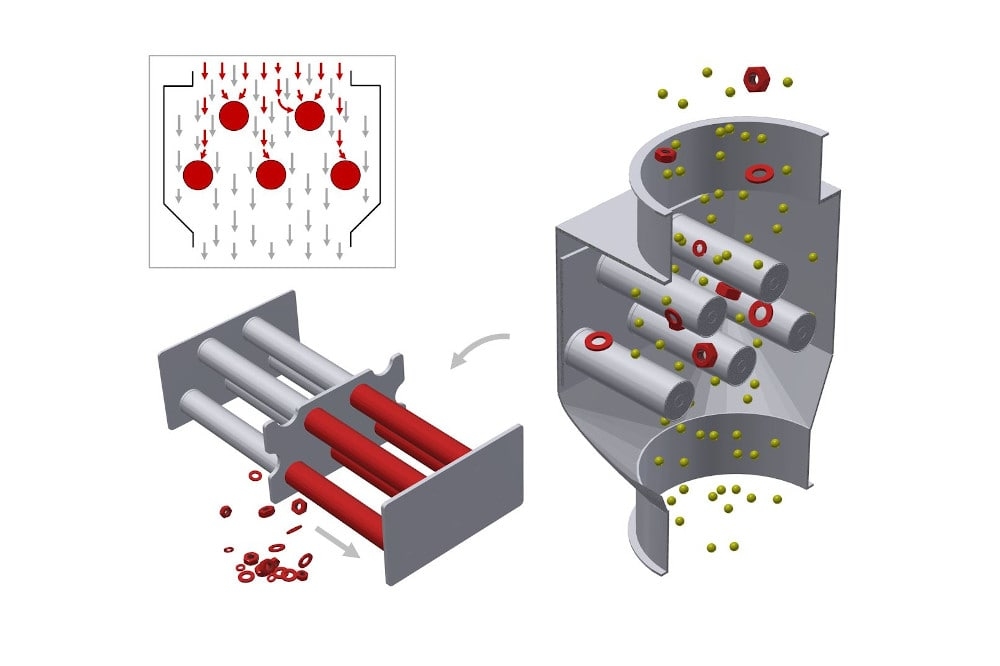

They utilizes the magnetic field formed by the built-in high-strength magnetic rods. When powder or granular materials flow through the equipment, the they will adsorb the ferromagnetic impurities in them, achieving the purification and separation of the materials. Impurities are regularly cleaned to ensure continuous and efficient operation.

1. Core Advantages

Magnetic core: NdFeB permanent magnet; standard surface magnetism 10000Gs, customizable up to 14000Gs

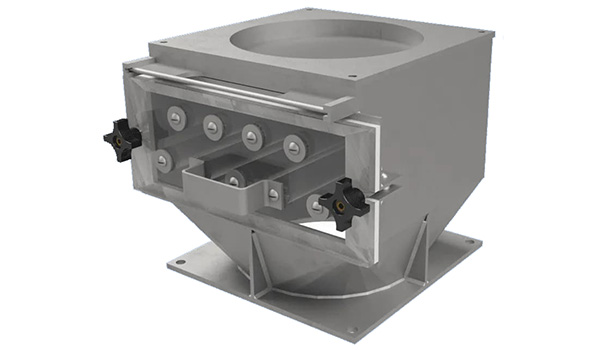

Drawer pull-out design: No need to disassemble pipeline, shorten cleaning downtime significantly
Staggered multi-layer magnetic bar layout, extend material-magnet contact time for high iron removal efficiency
Housing options: Carbon steel anti-rust coating / SS304 / SS316L stainless steel, food-grade polishing available
Standard PN10 flange connection, easy docking with industrial conveying pipelines
Static magnetic separation, no power consumption, low long-term operating cost
High temperature customized version available, continuous working temperature up to 120℃/150℃

Model	Flange DN Size	Max Throughput (T/h)	Magnetic Layer	Surface Magnetism	Housing Material	Max Working Temp	Net Weight (kg)
DMS-100	DN100	12	Single/Double Layer	10000Gs	Carbon Steel / SS304	≤80℃	82
DMS-150	DN150	30	Single/Double Layer	10000Gs	Carbon Steel / SS304	≤80℃	145
DMS-200	DN200	55	Double Layer Standard	11000Gs	SS304 / SS316L	≤100℃	226
DMS-250	DN250	90	Double Layer Standard	12000Gs	SS304 / SS316L	≤100℃	318
DMS-300	DN300	140	Double/Triple Layer	12000Gs	SS316L Optional	≤100℃	440

2.2 Custom Optional Specifications

Magnet upgrade: High temperature resistant sintered NdFeB for high-temperature powder production
Connection type: Sanitary tri-clamp can replace flange for food & pharmaceutical pipelines
Magnetic layout: Single-layer, double-layer or triple-layer staggered magnetic bars

Food & Feed: Flour, starch, milk powder, feed additive conveying pipelines
Plastic Industry: Plastic pellets, masterbatch powder before extruder equipment
Chemical Raw Material: Dry pigment, additive, solid chemical powder purification
Mineral & Building Material: Quartz powder, talc powder, cement raw meal iron removal
Ceramic Industry: Kaolin, ceramic glaze powder metal impurity filtering
New Energy Industry: Lithium battery positive & negative electrode powder purification

5. FAQ

Single layer: Low cost, fit low iron impurity concentration and medium purity requirements.

Double staggered layers: Longer material-magnet contact path, higher iron capture efficiency, recommended for high-purity production lines.
