Pipeline Magnetic Separators

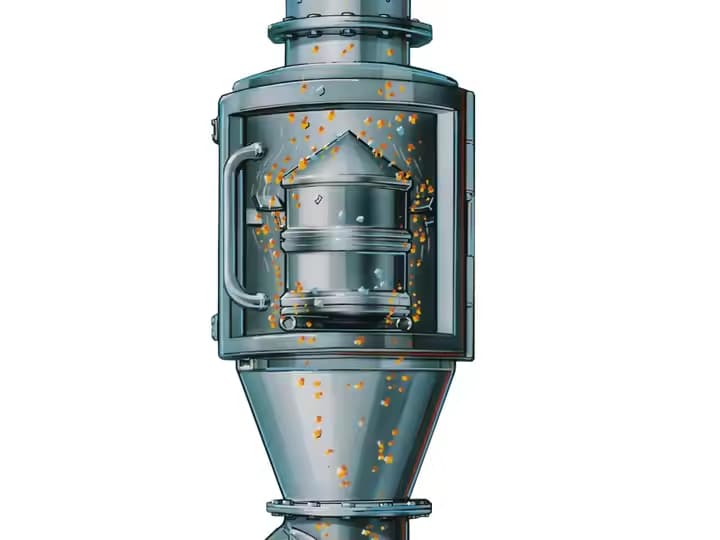

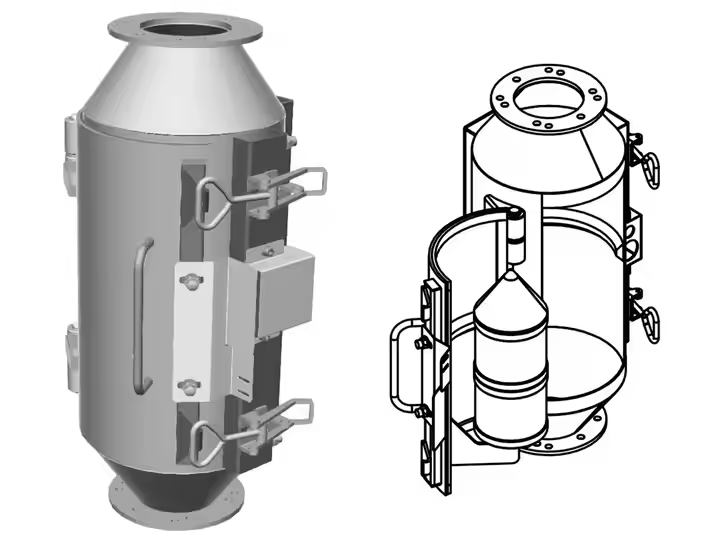

Pipeline Magnetic Separators are widely used in the processing production lines of flour, sugar, milk powder, seasonings, etc. They are used to remove ferromagnetic impurities in powder, granular or liquid food during the material transportation process, ensuring food safety and stable equipment operation.  It is usually installed in the conveying pipeline and utilizes the magnetic field generated by the built-in high-strength magnetic rods to adsorb tiny metal impurities such as iron filings and nails in the flowing materials, preventing them from entering the next process or the finished product.

1. Core Advantages

• High magnetic strength up to 12,000–14,000 Gs, capture micro iron particles ≥30μm
• Full stainless steel housing (SS304 / SS316L optional), food-grade polishing available
• Low flow resistance, small pressure drop, no material blockage
• Two cleaning modes for flexible production matching
• Support flange, tri-clamp, thread connection, easy pipeline docking
• Long service life, NdFeB magnet 5-year non-demagnetization guarantee

2.Technical Parameter Tables

Non-standard can be customized

3.Main Application Industries

• Food & Starch: Grain powder, syrup, dairy, cocoa, feed raw material

• Chemical & Coating: Paint, slurry, pigment, chemical liquid circulation pipeline

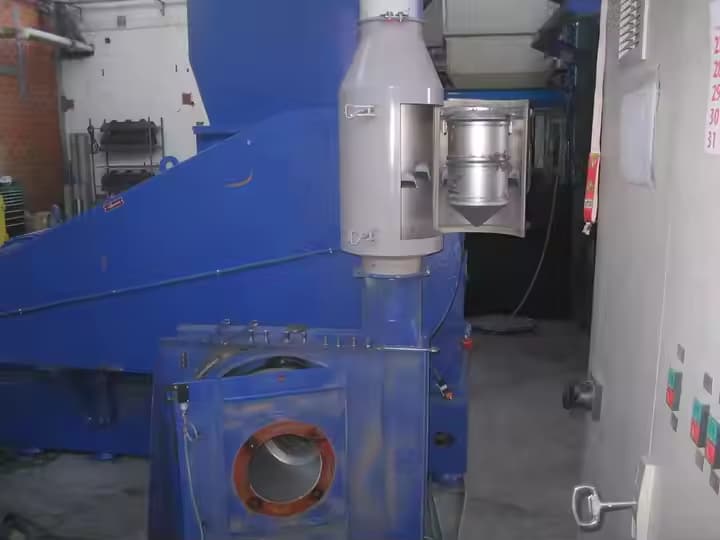

• Plastic & Rubber: Plastic particle, masterbatch, prevent extruder screw damage

• Mineral & Cement: Dry mineral powder, cement raw material before roller mill

• Pharmaceutical: Sanitary pipeline raw material purification

• Water Treatment & Coolant: Grinding fluid, circulating cooling liquid iron removal

FAQ

Q1: How to choose suitable magnetic Gauss strength?

• 6000–8000Gs: Large tramp iron, low purity standard, dry coarse mineral powder
• 8000–10000Gs: Standard food, plastic, general chemical production

• 10000–14000Gs: High-purity production, capture micro iron oxide & stainless steel dust
