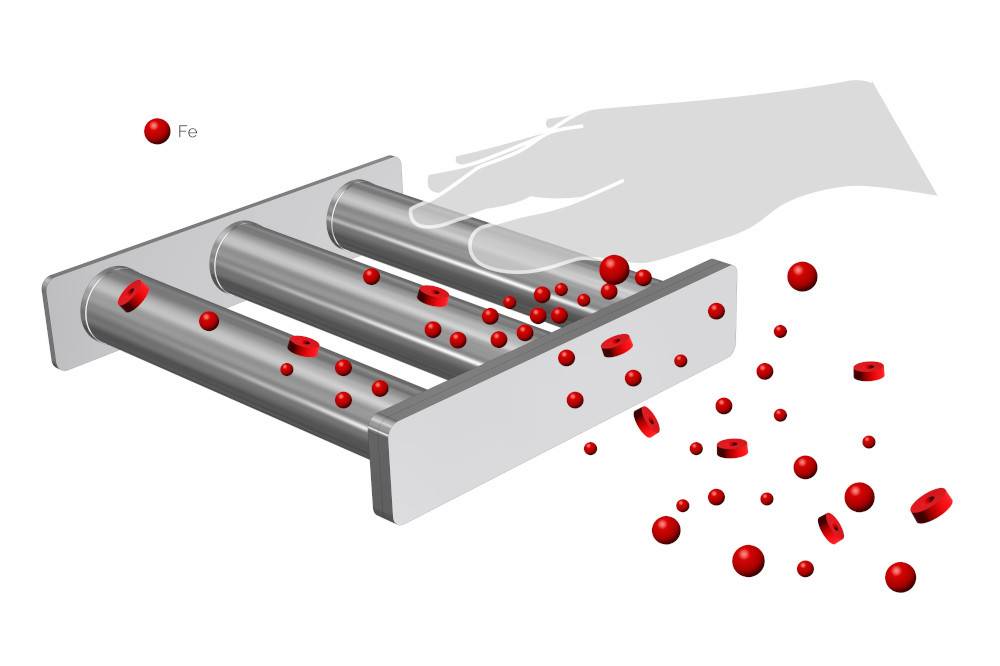

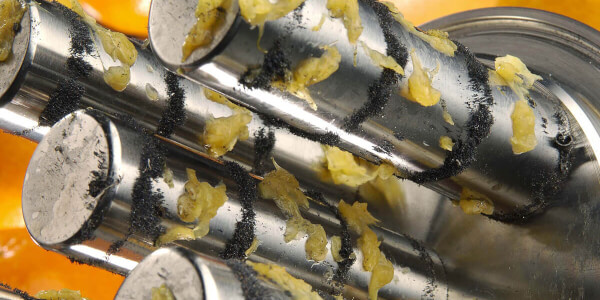

Magnetic grate are widely used in food processing industries such as dairy products, fruit juices, sauces, and syrups.They form a magnetic field by installing high-strength magnetic rods inside the fluid pipeline, which can effectively adsorb metal contaminants such as iron filings and iron powder, achieving the effect of removing ferromagnetic impurities in liquid or paste foods. They can prevent metal impurities from entering the final product, prevent equipment wear, and ensure the purity of the product and food safety.
| Easy to clean magnetic grate | Normal magnetic grate |
 |
 |
 |
 |
| MODEL NO | Dimension (mm) - L | Dimension (mm) - W | Dimension (mm) - H | No of bars |
| XMKM10/10 | 100 | 100 | 40 | 2 |
| XMKM15/15 | 150 | 150 | 40 | 3 |
| XMKM20/20 | 200 | 200 | 40 | 4 |
| XMKM25/25 | 250 | 250 | 40 | 5 |
| XMKM30/30 | 300 | 300 | 40 | 6 |
| XMKM35/35 | 350 | 350 | 40 | 7 |
| XMKM40/40 | 400 | 400 | 40 | 8 |
| XMKM45/45 | 450 | 450 | 40 | 9 |
| XMKM50/50 | 500 | 500 | 40 | 10 |
| XMKM20/10 | 200 | 100 | 40 | 2 |
| XMKM30/10 | 300 | 100 | 40 | 2 |
| XMKM30/20 | 300 | 200 | 40 | 4 |
| XMKM40/10 | 400 | 100 | 40 | 2 |
| XMKM40/20 | 400 | 200 | 40 | 4 |
| XMKM40/30 | 400 | 300 | 40 | 6 |
| XMKM50/10 | 500 | 100 | 40 | 2 |
| XMKM50/20 | 500 | 200 | 40 | 4 |
| XMKM50/30 | 500 | 300 | 40 | 6 |
| XMKM50/40 | 500 | 400 | 40 | 8 |
