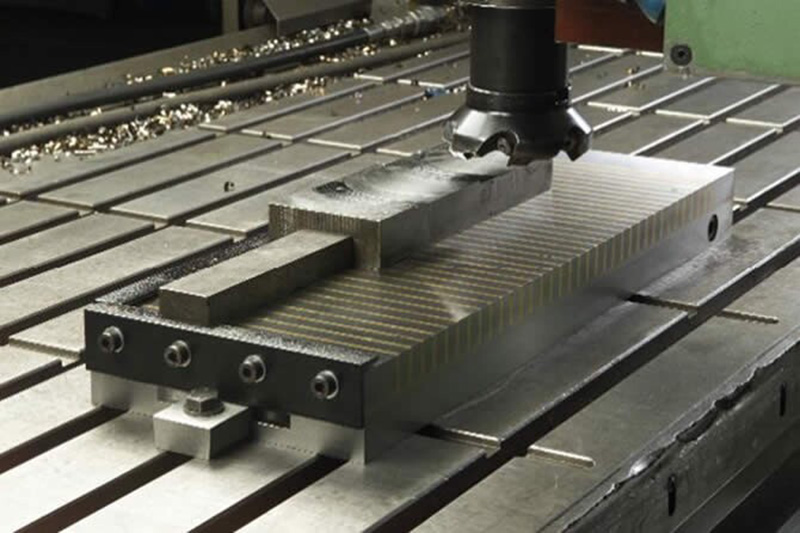

Magnetic Chuck

1. Core Advantages

• Permanent magnet drive, no power consumption during operation, no risk of workpiece falling caused by power cut
• Uniform magnetic attraction across full surface, less workpiece deformation compared with mechanical clamping
• Open structure, larger processing range, tool can approach workpiece from multiple directions
• High flatness working face, suitable for precision grinding and finish milling processes
• Simple operation: switch handle to turn ON / OFF magnetism, fast loading & unloading
• Multiple models: standard pole for rough machining, fine pole for thin plate & precision finish machining
• Sealed internal structure, effectively resist cutting fluid, coolant infiltration
• Custom size, ultra-large size and special pole pitch design available

2.2 Optional Custom Specifications

• Magnetic circuit upgrade: Heavy-duty high suction magnetic circuit for thick & large steel blocks
• Structure type: Standard manual switch, can design multi-region independent control magnetic chuck
• Surface treatment: Hardened grinding surface, anti-rust protection
• Size customization: Extra large size, narrow strip special size according to customer drawing
• Sealing upgrade: Enhanced waterproof sealing for long-time coolant splash environment

• Accessory: Magnetic separator block, auxiliary pole blocks for small workpieces
